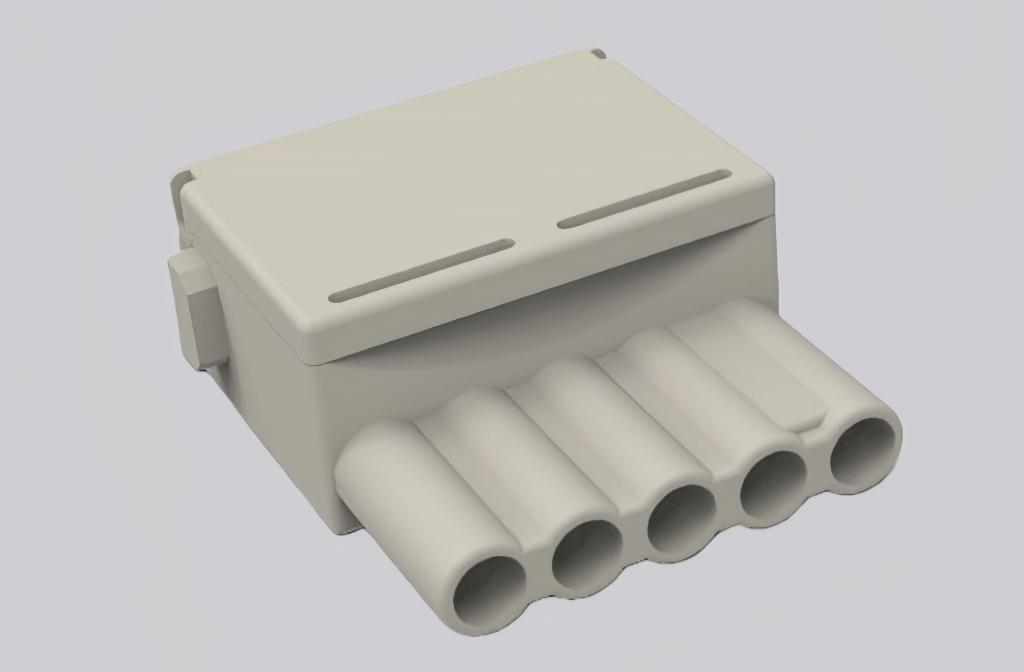

The HME-005-F industrial connector is purpose-built for seamless integration across factory automation, industrial IoT, robotics, and process control systems. Engineered to endure harsh industrial environments, it features rugged construction that resists corrosion, dust, and vibration, maintaining peak performance in extreme temperatures and high-humidity conditions.
Designed for uncompromising durability, this connector delivers stable signal transmission and reliable power delivery via precision-machined contacts. Its compact form factor enables easy integration into space-constrained setups, while the secure locking mechanism ensures vibration-proof connections, minimizing operational disruptions.
Fully compatible with global industrial protocols and standard cable assemblies, the HME-005-F simplifies system integration and reduces maintenance costs. A cost-effective, high-performance solution that balances rugged reliability with user-centric design, it’s the ideal choice to enhance connectivity efficiency in critical industrial applications.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Screw connection |
| Male/female | Female |
| Number of connector contacts | 5 |
| Rated current | 16A |
| Rated voltage | 230V |
| Rated pulse voltage | 4KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.5-2.5mm² |
| Wire gauge (AWG) | 20-14 AWG |
| Maximum cable diameter | - |
| Stripping length | 7.5mm |
| Standard | DIN EN 60664; DIN EN 61984 |
