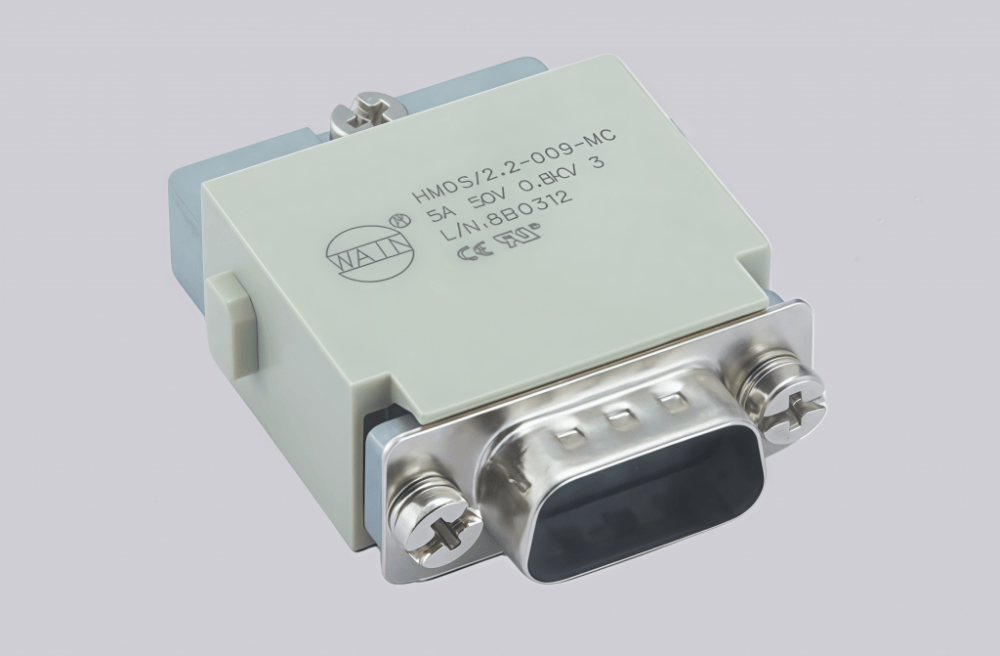

The HMDS/2.2-009-MC is a high-reliability industrial connector engineered for superior durability and stable transmission in harsh operating conditions. Constructed with corrosion-resistant rugged housing and precision gold-plated contacts, it delivers exceptional mechanical strength and low contact resistance, supporting over 10,000 mating cycles while withstanding extreme temperatures (-40°C to +125°C), vibration, and moisture.
Ideal for industrial automation, manufacturing machinery, renewable energy systems, and transportation equipment, this connector features IP67 ingress protection to shield against dust and water ingress. Compliant with international industrial standards (IEC/UL), it ensures interference-free signal and power transmission for critical applications. Its tool-free quick-mating design enables efficient installation and maintenance, balancing performance and operational convenience.

Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 9 |
| Rated current | 5A |
| Rated voltage | 50V |
| Rated pulse voltage | 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated, Gold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.09-0.82mm² |
| Wire gauge (AWG) | 28-18 AWG |
| Maximum cable diameter | 2.5mm |
| Stripping length | 5mm |
| Standard | DIN EN 60664, DIN EN 61984 |
