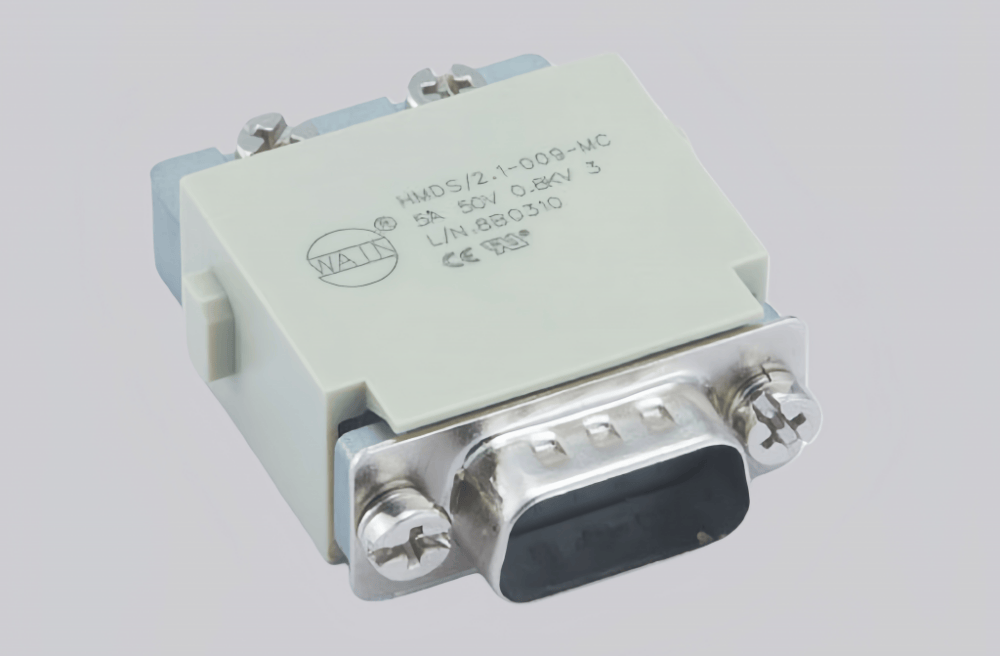

The HMDS/2.1-009-MC is a high-performance industrial connector optimized for reliability in harsh operating environments. Built with a rugged, corrosion-resistant housing and precision gold-plated contacts, it delivers exceptional durability—supporting over 10,000 mating cycles—and stable signal/power transmission, with low contact resistance even under extreme temperatures (-40°C to +125°C), vibration, and moisture.
Featuring IP67 ingress protection against dust and water, this connector ensures long-term performance in demanding settings. Its tool-free quick-mating design enables efficient installation and maintenance, enhancing operational productivity. Compliant with IEC/UL standards, it is ideal for industrial automation, manufacturing machinery, renewable energy systems, and transportation equipment, providing interference-free connections for critical applications.

Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 9 |
| Rated current | 5A |
| Rated voltage | 50V |
| Rated pulse voltage | 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated, Gold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.09-0.82mm² |
| Wire gauge (AWG) | 28-18 AWG |
| Maximum cable diameter | 2.5mm |
| Stripping length | 5mm |
| Standard | DIN EN 60664, DIN EN 61984 |
