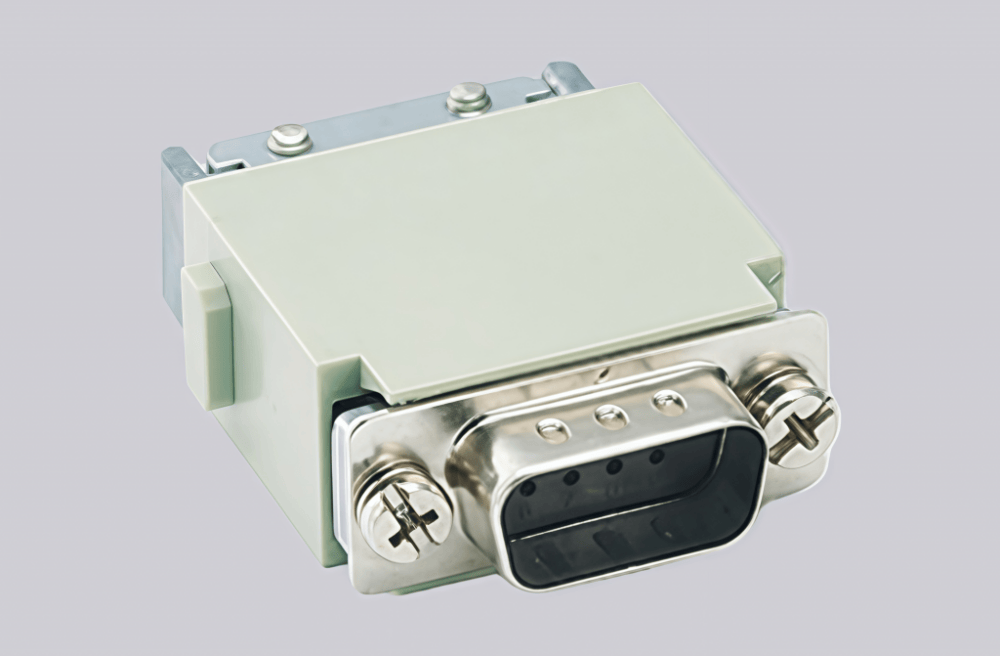

HMDS/2.1-009-MC 3SP01 is a high-performance industrial component engineered for reliable operation and enhanced versatility in demanding working environments. Crafted from top-tier materials, it delivers exceptional structural stability, superior corrosion resistance, and excellent wear resistance, ensuring consistent performance under harsh conditions involving intense friction, chemical exposure, or extreme temperature fluctuations. The integrated "3SP01" specification denotes precision structural reinforcement and optimized functional features, enabling seamless integration with existing systems while meeting specialized industrial application requirements. Suitable for machinery manufacturing, industrial automation, aerospace, and marine engineering sectors, it maintains steady operation while effectively reducing maintenance frequency and operational costs. Compliant with rigorous industry quality standards, it balances robust durability and practical usability, making it a trusted choice for critical operations requiring long-term stability, strong adaptability, and high operational efficiency.

Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 9 |
| Rated current | 5A |
| Rated voltage | 50V |
| Rated pulse voltage | 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-platedGold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.09-0.82mm² |
| Wire gauge (AWG) | 28-18 AWG |
| Maximum cable diameter | 2.5mm |
| Stripping length | 5mm |
| Standard | DIN EN 60664DIN EN 61984 |
