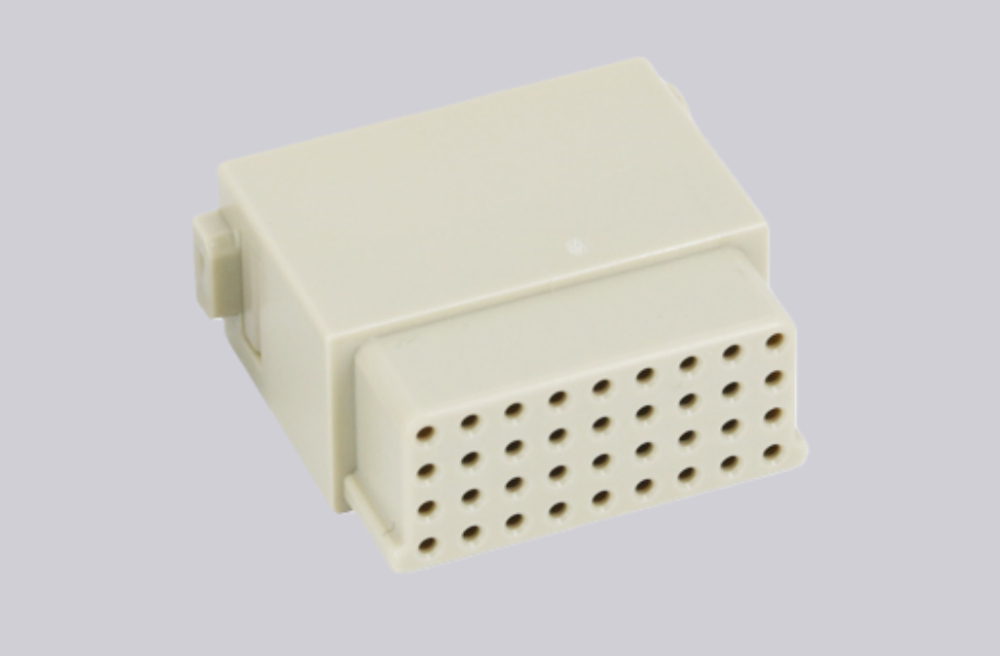

The HMDS-036-FC is a high-reliability industrial connector optimized for harsh-environment applications, featuring IP67 dustproof/waterproof protection to shield against moisture, debris, and chemical corrosion. It operates stably across extreme temperatures (-40°C to +125°C) and resists heavy vibration, ensuring uninterrupted power and signal transmission.
Equipped with 36 precision contacts rated for 16A/500V AC/DC, it delivers exceptional signal integrity with minimal interference, supporting efficient power distribution. Crafted from corrosion-resistant alloy and flame-retardant materials, it complies with UL, IEC, and RoHS standards for long-term durability. The tool-free quick-locking mechanism enables fast, hassle-free installation and maintenance, reducing operational costs.
Ideal for industrial automation, large-scale renewable energy systems, heavy-duty machinery, and robotics, it meets the rigorous connectivity needs of high-contact-count applications.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Crimp connection |
| Male/female | Female |
| Number of connector contacts | 36 |
| Rated current | 4A |
| Rated voltage | 32V |
| Rated pulse voltage | 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated, Gold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.09-0.52mm² |
| Wire gauge (AWG) | 28-22 AWG |
| Maximum cable diameter | 2mm |
| Stripping length | 5mm |
| Standard | DIN EN 60664, DIN EN 61984 |
