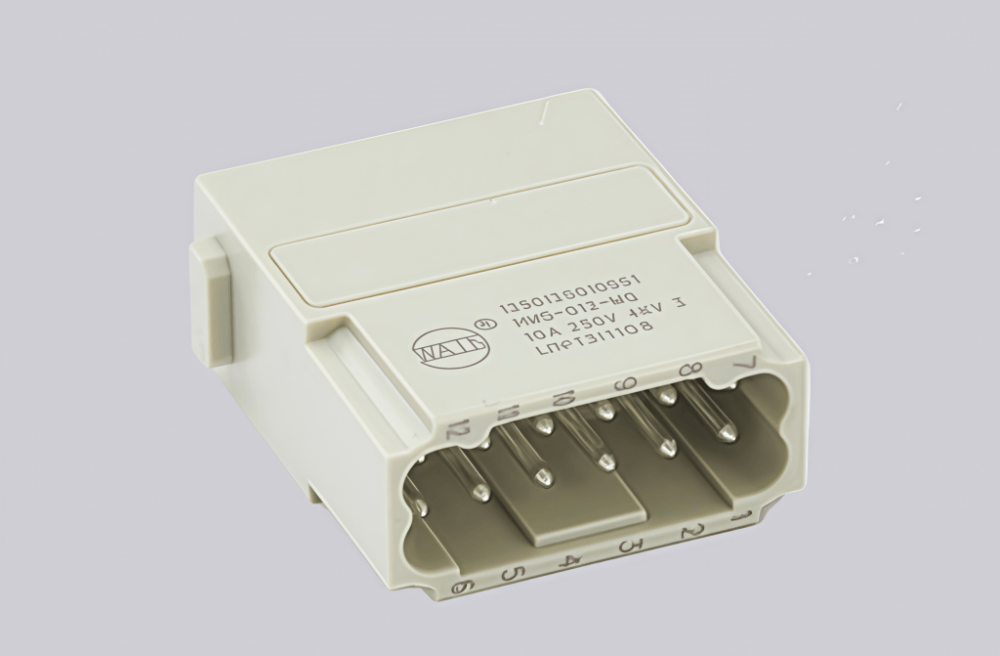

The HMD-012-MQ is a rugged, high-performance industrial connector built for mission-critical signal and power transmission in harsh environments. Boasting an IP67 protection rating, it resists dust, water spray, and corrosion, paired with a wide operating temperature range of -40°C to 105°C for reliable operation in extreme industrial conditions.
Equipped with 12 gold-plated pins, it delivers ultra-low contact resistance (<3mΩ) and exceptional signal integrity, ensuring stable data transfer and power supply for automation, energy, and transportation equipment. The secure bayonet locking mechanism enables quick, tool-free installation, while compatibility with industry standards allows seamless integration into existing systems.
Ideal for factory automation, heavy machinery, and outdoor industrial setups, this connector combines durability, transmission precision, and versatile adaptability to meet stringent industrial demands.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Spring connection (quick connection) |
| Male/female | Male |
| Number of connector contacts | 12 |
| Rated current | 10A |
| Rated voltage | 250V |
| Rated pulse voltage | 4KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-1.5mm²；0.5-2.5mm² |
| Wire gauge (AWG) | 26-16 AWG；20-14 AWG |
| Stripping length | 10±0.5mm |
| Standard | DIN EN 60664DIN EN 61984 |
