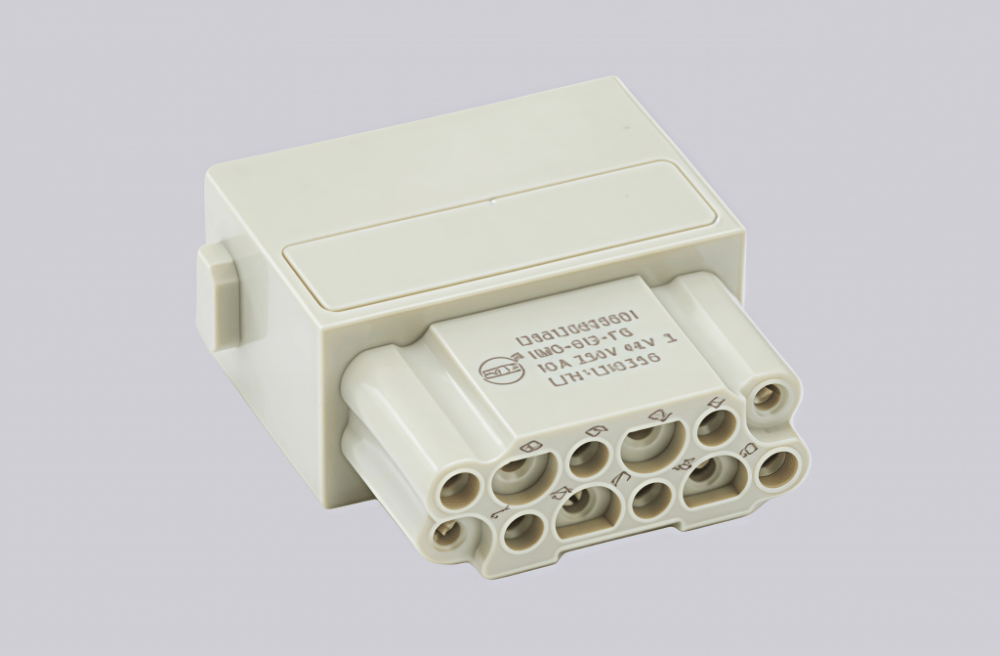

The HMD-012-FQ is a high-performance industrial connector engineered for reliable signal and power transmission in harsh operating environments. Featuring a rugged, corrosion-resistant housing and precision-machined contacts, it ensures stable connectivity even in extreme temperatures (-40°C to 125°C), high humidity, and vibration-prone settings.
Ideal for manufacturing automation, robotics, renewable energy systems, and industrial control panels, this connector supports fast, tool-free mating for efficient installation and maintenance. With IP67-rated protection against dust and water ingress, it guarantees long-term durability in demanding industrial applications.
Its compact design saves space while delivering exceptional electrical performance, reducing signal loss and ensuring consistent operation. Trust the HMD-012-FQ for robust, low-maintenance connectivity that enhances system reliability and minimizes downtime.

Technical Data
| Wire gauge (mm²) | 0.14-1.5mm²;0.5-2.5mm² |
| Wire gauge (AWG) | 26-16 AWG;20-14 AWG |
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Spring connection (quick connection) |
| Male/female | Female |
| Number of connector contacts | 12 |
| Rated current | 10A |
| Rated voltage | 250V |
| Rated pulse voltage | 4KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤3mΩ |
| Stripping length | 10±0.5mm |
| Standard | DIN EN 60664;DIN EN 61984 |
