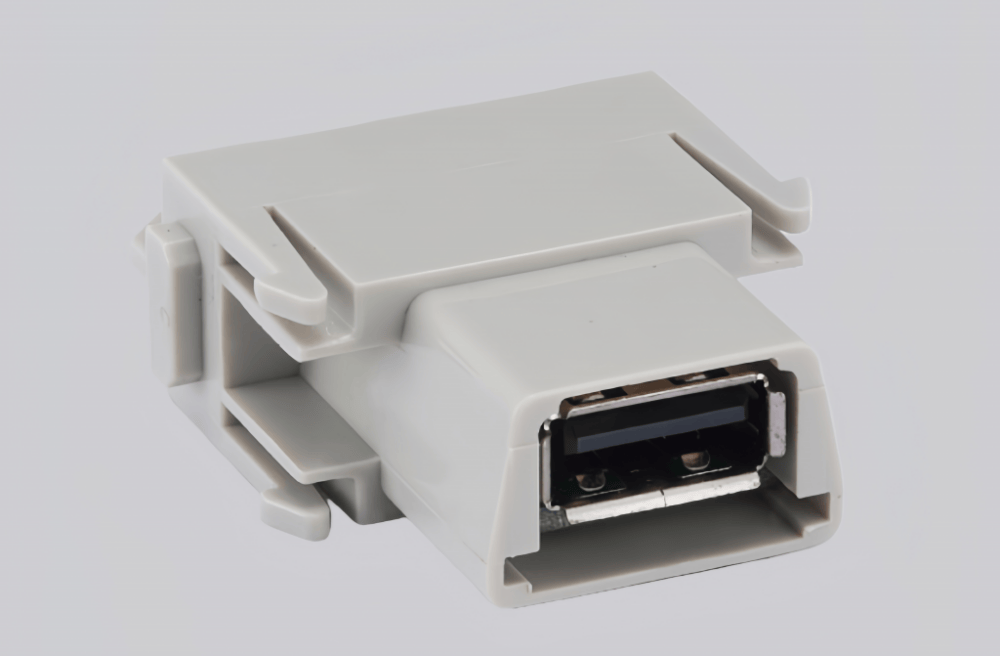

The HM-USB-F industrial USB connector offers broad compatibility with USB 2.0/3.0 protocols and industrial control devices. Engineered for stable data/power transmission, it features anti-interference design and rugged housing, withstanding vibration, dust, and extreme temperatures in industrial environments.
Ideal for automation systems, IoT devices, industrial computers, and instrumentation, it ensures reliable connectivity for critical workflows. Its plug-and-play functionality and durable construction deliver long-term performance, meeting rigorous industrial application demands.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | - |
| Male/female | Female |
| Number of connector contacts | 4 |
| Rated current | 1A |
| Rated voltage | 50V |
| Rated voltage as per UL | ＜30V |
| Rated pulse voltage | 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+85℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | - |
| Surface treatment | - |
| Contact resistance | - |
| Wire gauge (mm²) | - |
| Wire gauge (AWG) | - |
| Maximum cable diameter | - |
| Tightening/testing torque | - |
| Stripping length | - |
| Standard | DIN EN 60664; DIN EN 61984 |
