HM-RJ45-F | High-Quality Rectangular Connectors

The HM-RJ45-F is a rugged industrial-grade RJ45 connector specifically engineered for high-speed data transmission in harsh operational environments. Ideal for factory automation, industrial Ethernet networks, and surveillance systems, it features an IP67-sealed housing that provides robust protection against dust, water ingress, and mechanical vibration, ensuring stable performance across extreme temperatures (-40°C to +85°C).

Compliant with TIA/EIA-568 standards, this connector supports Gigabit Ethernet (10/100/1000 Mbps) with exceptional signal integrity. Its gold-plated contacts minimize insertion loss and crosstalk, while the corrosion-resistant metal shell enhances durability, enabling reliable operation through 5,000+ mating cycles for long-term, low-maintenance connectivity.

Designed for seamless integration, the HM-RJ45-F offers standard RJ45 interface compatibility and tool-free installation, simplifying deployment and maintenance in industrial settings. Meeting global electromagnetic compatibility (EMC) and safety standards, it delivers consistent, high-performance data communication, making it the preferred choice for critical industrial applications requiring dependable network connectivity.

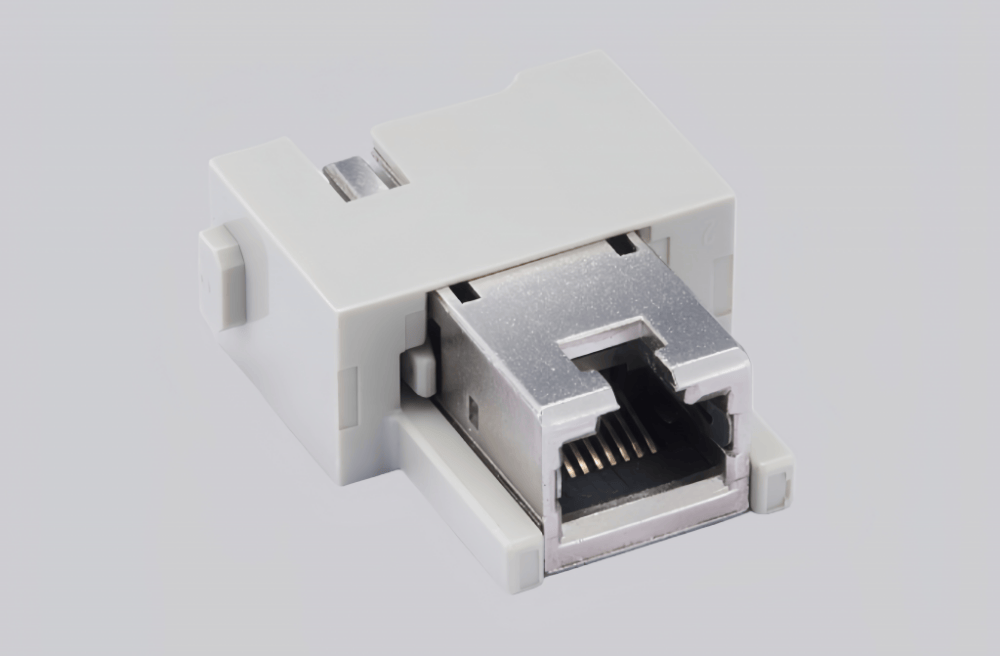

HM-RJ45-F | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HM modular insert series
Module size	Single module
Male/female	Female
Number of connector contacts	8
Rated current	1A
Rated voltage	50V
Rated voltage as per UL	＜30V
Rated pulse voltage	0.8KV
Class of pollution	3
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+85℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Transmission Rate	10/100/1000Mbit/10Gbit/s
Transmission Characteristics	Category 6e patch cords up to 500 MHz; as per ISO/IEC 24 702; ISO/IEC 11 801
Standard	DIN EN 60664; DIN EN 61984
