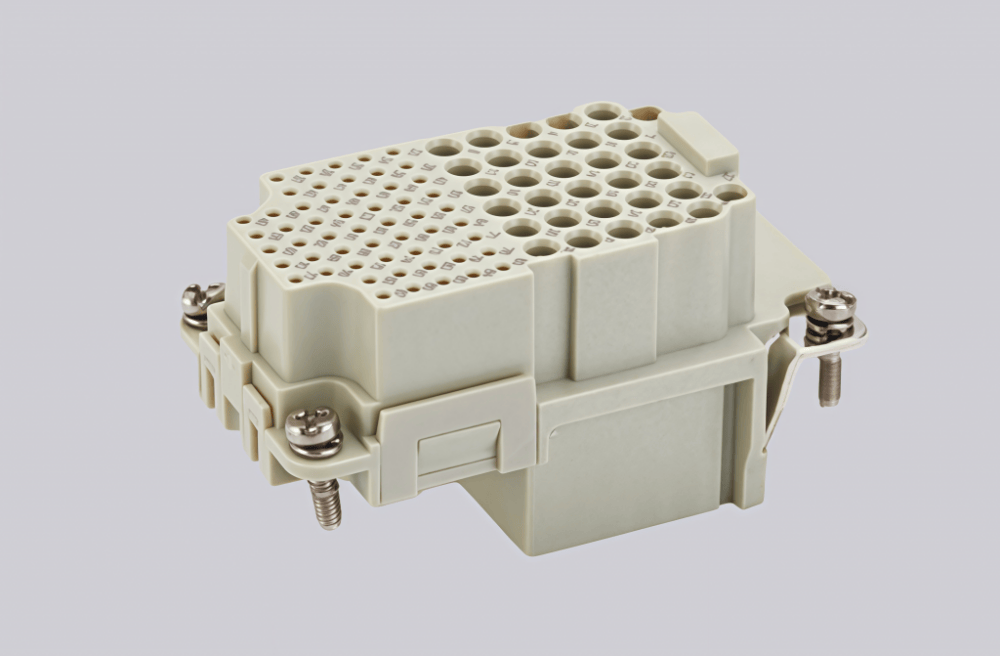

The HK-032/55-FC is a high-performance industrial connector, engineered for reliable power and signal transmission in rugged operating conditions. It is well-suited for heavy-duty industrial equipment, power distribution systems, and outdoor electrical installations.
Crafted with high-grade conductive materials, this connector ensures low contact resistance and strong anti-corrosion performance. It can withstand harsh industrial environments, including temperature fluctuations and mechanical wear, guaranteeing long-term reliable operation.
Featuring a user-friendly structure, it enables quick and secure cable installation without complex tools. Its compact design saves space in electrical enclosures, making it an ideal choice for high-efficiency industrial electrical connections.
Technical Data
| Series | HK insert series |
| Connection type | Crimp connection |
| Male/female | Female |
| Specifications | 10B |
| Number of connector contacts | 32 (10A) + 55 (4A) |
| Grounding contacts | Yes |
| Rated current | 10A, 4A |
| Rated voltage | 250V (10A), 50V (4A) |
| Rated pulse voltage | 4KV (10A), 0.8KV (4A) |
| Class of pollution | 2 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated, Gold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² (10A), 0.09-0.52mm² (4A) |
| Wire gauge (AWG) | 26-14 AWG (10A), 28-20 AWG (4A) |
| Stripping length | 0.14-2.5mm²→8mm; 0.09-0.52mm²→5mm |
| Standard | DIN EN 60664, DIN EN 61984 |
