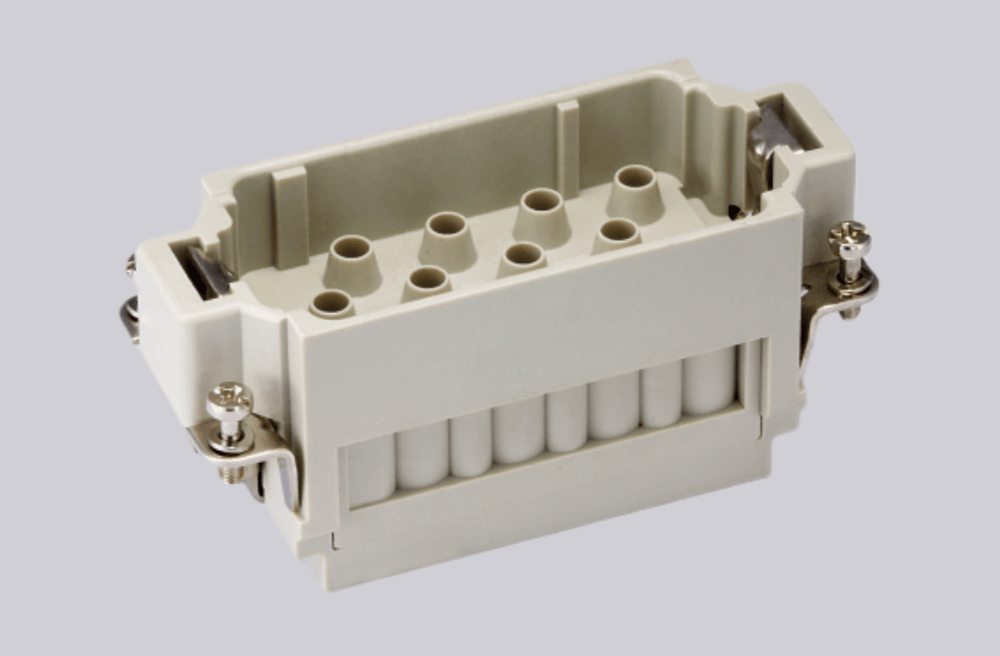

The HK-012/2-MC is a robust and reliable connector designed for modern professional and industrial applications. Its compact yet solid construction allows for efficient installation and secure integration into electrical and control systems, ensuring stable performance in demanding working environments.
Manufactured with high-quality materials, the HK-012/2-MC offers excellent mechanical strength and long-term durability. The optimized internal design ensures consistent electrical performance and dependable connections under continuous operation. Precision engineering helps minimize maintenance requirements while enhancing overall reliability.
The HK-012/2-MC can be used as a core or supporting component in a wide range of systems. Each unit is produced under strict quality control standards to guarantee safety, performance consistency, and long service life. With its balanced combination of efficiency, durability, and reliability, it is an ideal solution for long-term professional use.
Technical Data
| Series | HK Insert Series |
| Male / Female | Male |
| Connection Type | Crimp connection |
| Specifications | 16B |
| Number of Connector Contacts | 12 + 2 |
| Grounding Contacts | Yes |
| Rated Current | 40A / 10A |
| Rated Voltage | 690V / 250V |
| Rated Pulse Voltage | 8 kV / 4 kV |
| Pollution Degree | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated / Gold-plated |
| Contact Resistance | ≤ 3 mΩ / ≤ 1 mΩ |
| Wire Gauge (mm²) | 1.5–6 mm² / 0.14–2.5 mm² |
| Wire Gauge (AWG) | 16–10 AWG / 26–14 AWG |
| Stripping Length | 1.5–6 mm² → 9.6 mm 0.14–1.5 mm² → 8 mm 2.5 mm² → 6 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
