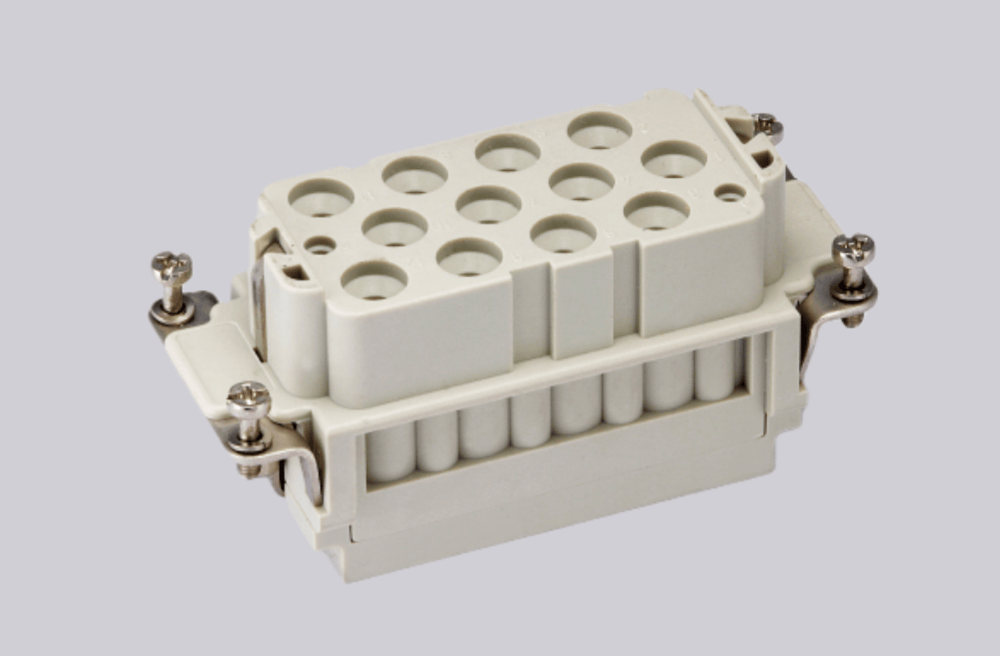

The HK-012/2-FC is a dependable and well-designed connector developed for modern professional and industrial applications. Its compact and robust structure enables efficient installation and secure integration into electrical and control systems, ensuring stable performance in demanding operating environments.
Manufactured from high-quality materials, the HK-012/2-FC delivers excellent durability and resistance to mechanical and environmental stress. The optimized internal configuration ensures consistent electrical performance and reliable connections during long-term operation. Precision manufacturing helps reduce maintenance needs while maintaining high reliability.
The HK-012/2-FC can serve as either a core or supporting component in a wide range of systems. Strict quality control throughout production ensures safety, performance consistency, and long service life. With its balanced combination of reliability, efficiency, and durability, it is well suited for long-term professional use.
Technical Data
| Series | HK Insert Series |
| Male / Female | Female |
| Connection Type | Crimp connection |
| Specifications | 16B |
| Number of Connector Contacts | 12 + 2 |
| Grounding Contacts | Yes |
| Rated Current | 40A / 10A |
| Rated Voltage | 690V / 250V |
| Rated Pulse Voltage | 8 kV / 4 kV |
| Pollution Degree | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated / Gold-plated |
| Contact Resistance | ≤ 3 mΩ / ≤ 1 mΩ |
| Wire Gauge (mm²) | 1.5–6 mm² / 0.14–2.5 mm² |
| Wire Gauge (AWG) | 16–10 AWG / 26–14 AWG |
| Stripping Length | 1.5–6 mm² → 9.6 mm 0.14–1.5 mm² → 8 mm 2.5 mm² → 6 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
