HK-009/9/18-MC | High-Quality Rectangular Connectors

The HK-009/9/18-MC is a high-performance industrial connector engineered for stable power and signal transmission in rugged operating conditions. Featuring a 9–18 pin configuration, it is tailored to meet the connectivity needs of automation equipment, heavy machinery, and outdoor industrial installations, ensuring consistent data and power flow even in high-demand scenarios.

Built with durability as a core priority, this connector carries an IP67 waterproof and dustproof rating, enabling it to resist harsh elements such as moisture, dust, and corrosion. It also tolerates extreme temperatures ranging from -40°C to 125°C and withstands continuous vibration, making it suitable for use in challenging industrial environments.

With a compact, lightweight design, the HK-009/9/18-MC allows for effortless installation and space-saving integration. Its robust metal housing enhances long-term reliability, while full compatibility with standard industrial interfaces ensures seamless system integration, making it a trusted choice for critical industrial applications.

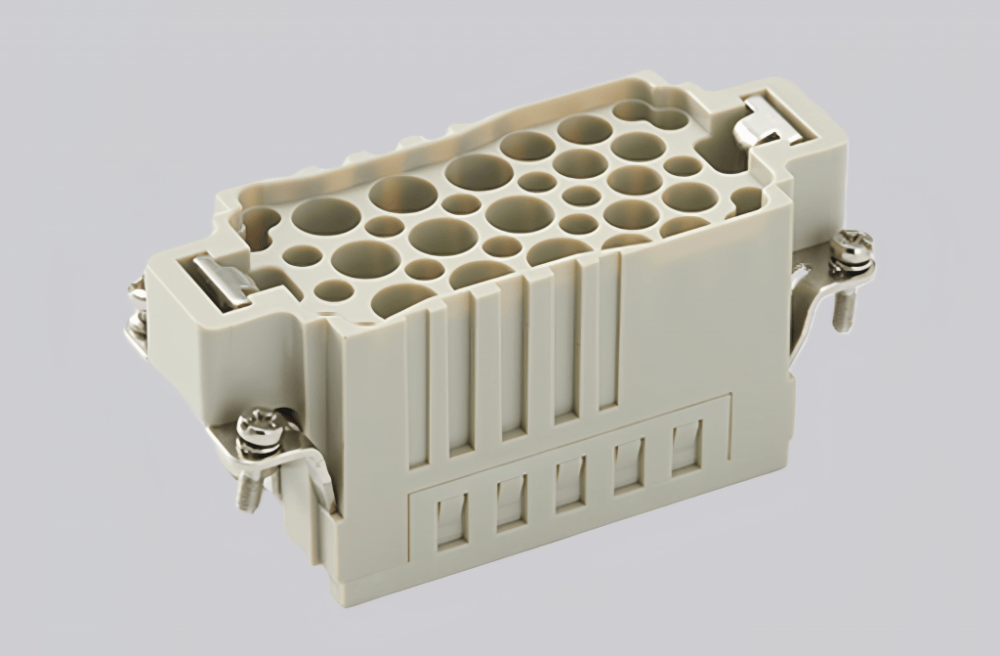

HK-009/9/18-MC | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HK insert series
Connection type	Crimp connection
Male/female	Male
Specifications	16B, 32B
Number of connector contacts	9 (40A) + 9 (16A) + 18 (10A)
Grounding contacts	Yes
Rated current	40A, 16A, 10A
Rated voltage	830V (40A/16A), 250V (10A)
Rated pulse voltage	8KV (40A/16A), 4KV (10A)
Class of pollution	3
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated, Gold-plated
Contact resistance	≤3mΩ
Wire gauge (mm²)	1.5-6mm² (40A), 0.14-4mm² (16A), 0.14-2.5mm² (10A)
Wire gauge (AWG)	16-10 AWG (40A), 26-12 AWG (16A), 26-14 AWG (10A)
Stripping length	9-10mm
Standard	DIN EN 60 664, DIN EN 61 984
