HK-008/24-MC | High-Quality Rectangular Connectors

The HK-008/24-MC is a high-performance connector designed for modern professional and industrial applications. Its compact yet robust construction supports multiple contacts, enabling efficient installation and reliable integration into complex electrical and control systems. The design ensures stable operation in demanding working environments.

Manufactured with high-quality materials, the HK-008/24-MC offers excellent mechanical strength and long-term durability. The optimized internal structure provides consistent electrical performance and secure connections under continuous operation. Precision engineering helps minimize maintenance requirements while enhancing overall reliability.

The HK-008/24-MC can be used as a core or supporting component in a wide range of systems. Each unit is produced under strict quality control standards to ensure safety, performance consistency, and long service life. With its balanced combination of capacity, efficiency, and durability, it is an ideal solution for long-term professional use.

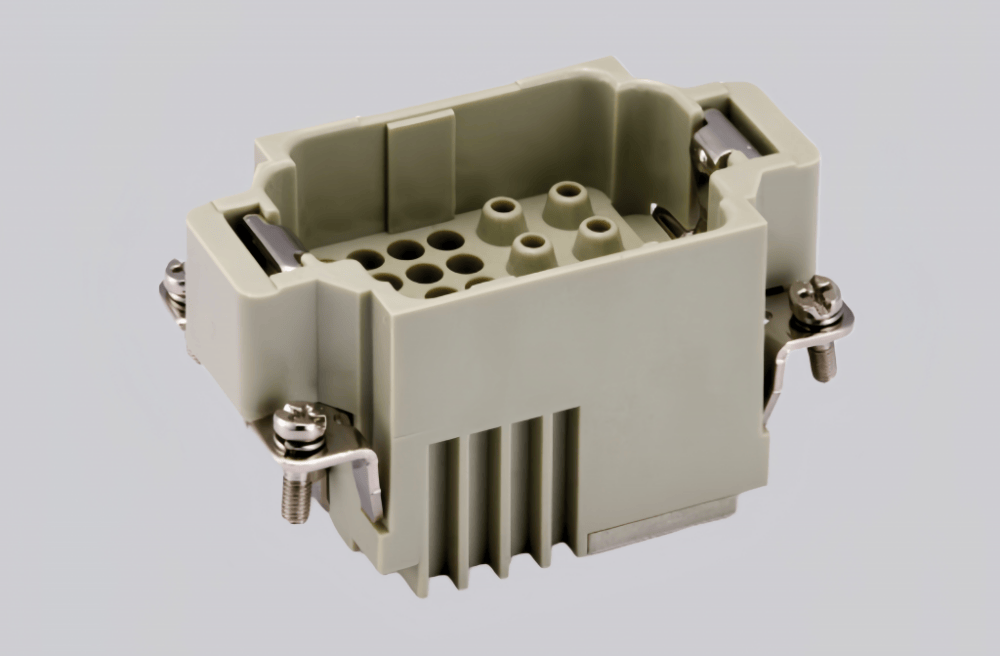

HK-008/24-MC | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HK Insert Series
Male / Female	Male
Connection Type	Crimp connection
Specifications	10B
Number of Connector Contacts	8 + 24
Grounding Contacts	Yes
Rated Current	16A / 10A
Rated Voltage	400V / 250V
Rated Pulse Voltage	6 kV / 4 kV
Pollution Degree	3
Insulation Resistance	≥ 10¹⁰ Ω
Working Temperature	-40℃ to +125℃
Mating Cycles	≥ 500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (Light Gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper Alloy
Surface Treatment	Silver-plated / Gold-plated
Contact Resistance	≤ 3 mΩ / ≤ 1 mΩ
Wire Gauge (mm²)	0.5–4 mm² / 0.14–2.5 mm²
Wire Gauge (AWG)	20–12 AWG / 25–14 AWG
Stripping Length	0.5–4 mm² → 7.5 mm 0.14–1.5 mm² → 8 mm 2.5 mm² → 6 mm
Standard	DIN EN 60664 / DIN EN 61984
