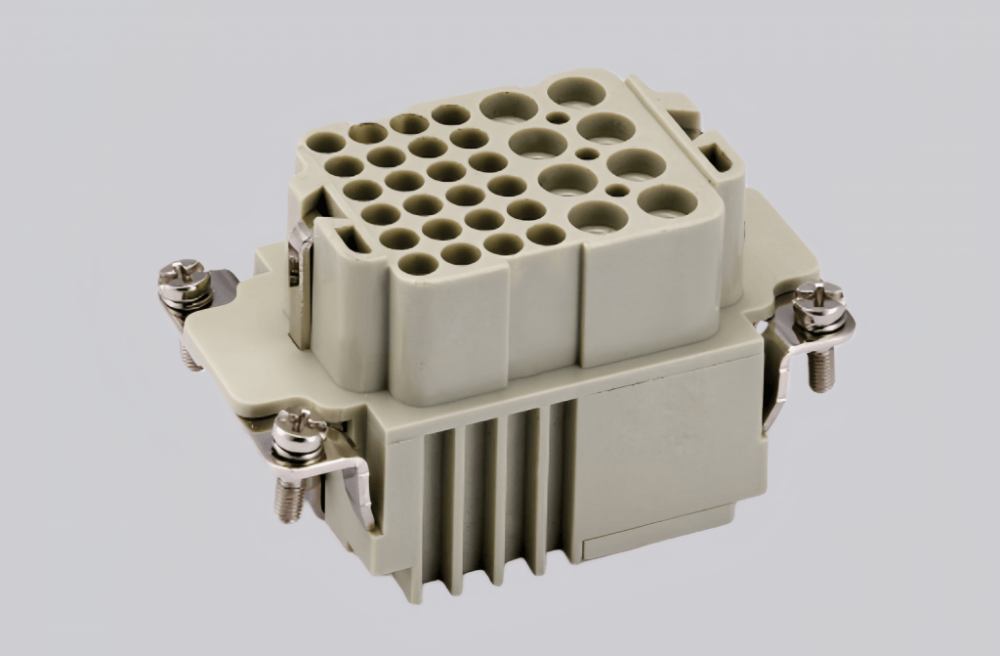

The HK-008/24-FC is a reliable multi-contact connector developed for modern professional and industrial applications. Its compact and robust design supports efficient installation and secure integration into complex electrical and control systems, ensuring stable operation in demanding environments.
Manufactured using high-quality materials, the HK-008/24-FC provides excellent durability and resistance to mechanical and environmental stress. The optimized internal configuration ensures consistent electrical performance and dependable connections over long-term use. Precision engineering helps reduce maintenance requirements while maintaining high reliability.
The HK-008/24-FC can function as either a primary or supporting component within various systems. Strict quality control throughout production ensures safety, performance consistency, and long service life. With its balanced combination of reliability, efficiency, and durability, it is well suited for long-term professional use.
Technical Data
| Series | HK Insert Series |
| Male / Female | Female |
| Connection Type | Crimp connection |
| Specifications | 10B |
| Number of Connector Contacts | 8 + 24 |
| Grounding Contacts | Yes |
| Rated Current | 16A / 10A |
| Rated Voltage | 400V / 250V |
| Rated Pulse Voltage | 6 kV / 4 kV |
| Pollution Degree | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated / Gold-plated |
| Contact Resistance | ≤ 3 mΩ / ≤ 1 mΩ |
| Wire Gauge (mm²) | 0.5–4 mm² / 0.14–2.5 mm² |
| Wire Gauge (AWG) | 20–12 AWG / 25–14 AWG |
| Stripping Length | 0.5–4 mm² → 7.5 mm 0.14–1.5 mm² → 8 mm 2.5 mm² → 6 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
