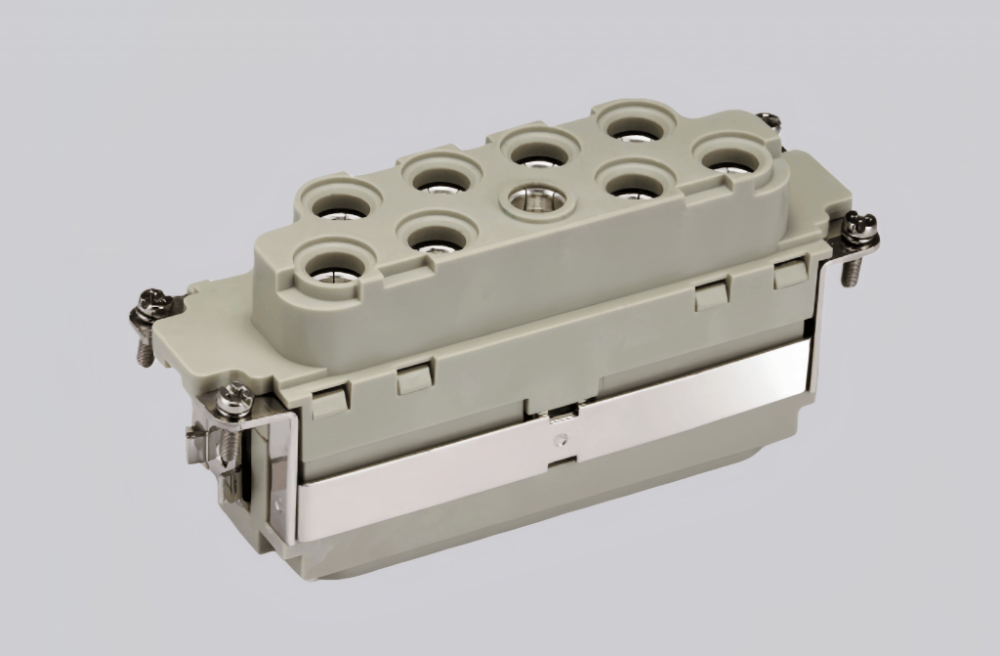

The HK-008/0-F is a reliable and well-engineered product developed for modern professional and industrial applications. Its compact and robust design allows for secure installation and stable operation, making it suitable for a wide range of system layouts and demanding environments.
Produced with high-quality materials, the HK-008/0-F delivers excellent durability and resistance to mechanical stress. The optimized internal structure ensures consistent performance and dependable operation during long-term use. Precision manufacturing helps reduce maintenance needs while maintaining efficiency and reliability.
The HK-008/0-F functions effectively as either a core or supporting component in various systems. Strict quality control during production ensures safety, stability, and performance consistency. With its balanced combination of durability, efficiency, and value, it is well suited for long-term professional use.
Technical Data
| Series | HK Insert Series |
| Male / Female | Female |
| Connection Type | Axial bolt connection / Screw connection |
| Specifications | 24B |
| Number of Connector Contacts | 8 |
| Grounding Contacts | Yes |
| Rated Current | 100A |
| Rated Voltage | 690V |
| Rated Pulse Voltage | 8 kV |
| Pollution Degree | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤ 0.5 mΩ |
| Wire Gauge (mm²) | 10–25 mm² |
| Wire Gauge (AWG) | 7–3 AWG |
| Tightening / Testing Torque | 10 mm² → 6 Nm 16 mm² → 6 Nm 25 mm² → 7 Nm |
| Stripping Length | 13 ±1 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
