HK-006/6-F | High-Quality Rectangular Connectors

The HK-006/6-F is a dependable and adaptable product designed to support modern professional applications. Featuring a compact and well-structured design, it enables efficient installation and smooth operation across a wide range of industrial and commercial environments. Its reliable construction makes it suitable for both new system designs and equipment upgrades.

Manufactured with high-quality materials, the HK-006/6-F provides excellent durability and resistance to mechanical stress. The optimized internal structure ensures stable and consistent performance, even in demanding operating conditions. Precision engineering helps minimize maintenance needs while maintaining long-term reliability and efficiency.

The HK-006/6-F functions effectively as either a core component or a supporting element within various systems. Each unit is produced under strict quality control standards to ensure safety and performance consistency. With its balanced combination of performance, durability, and cost efficiency, the HK-006/6-F is a practical solution for long-term professional use.

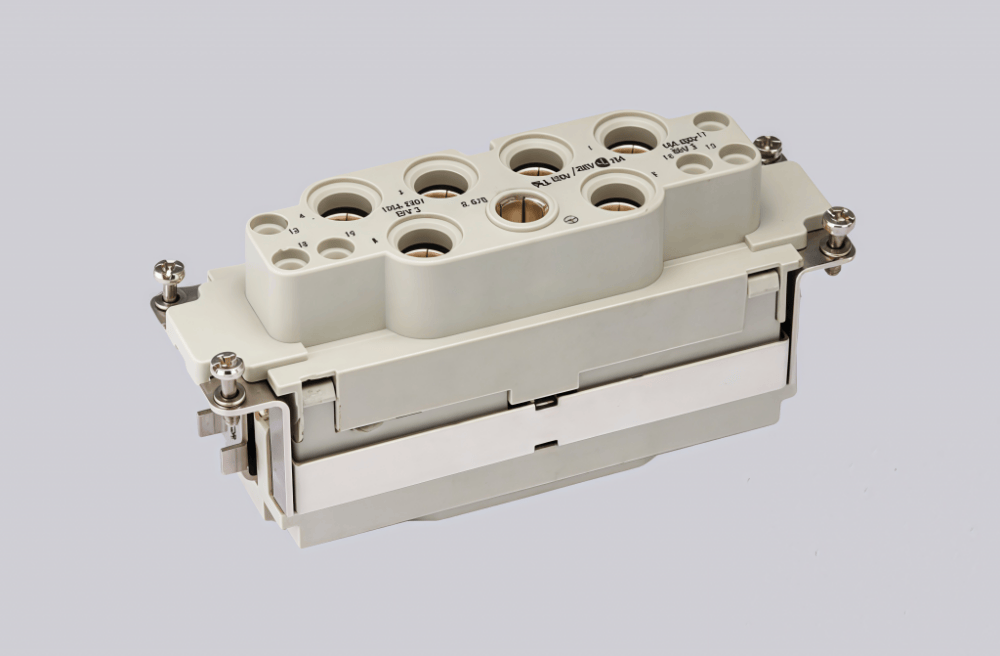

HK-006/6-F | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HK Insert Series
Male / Female	Female
Connection Type	Axial bolt connection / Screw connection
Specifications	24B
Number of Connector Contacts	6 + 6
Grounding Contacts	Yes
Rated Current	100A / 16A
Rated Voltage	690V / 400V
Rated Pulse Voltage	8 kV / 6 kV
Pollution Degree	3
Insulation Resistance	≥ 10¹⁰ Ω
Working Temperature	-40℃ to +125℃
Mating Cycles	≥ 500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (Light Gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper Alloy
Surface Treatment	Silver-plated
Contact Resistance	≤ 0.5 mΩ / ≤ 3 mΩ
Wire Gauge (mm²)	16–35 mm² / 0.2–2.5 mm²
Wire Gauge (AWG)	5–2 AWG / 24–14 AWG
Tightening / Testing Torque	16 mm² → 6 Nm 25 mm² → 7 Nm 35 mm² → 8 Nm 0.2–2.5 mm² → 0.8 Nm
Stripping Length	16–35 mm² → 13 ±1 mm 0.2–2.5 mm² → 7.5 mm
Standard	DIN EN 60664 / DIN EN 61984
