HK-006/36-FC | High-Quality Rectangular Connectors

The HK-006/36-FC is a reliable high-density connector designed for modern professional and industrial applications. Its compact and robust design supports multiple contacts, allowing efficient installation and secure integration into complex electrical and control systems. The structure is optimized to ensure stable performance in demanding environments.

Manufactured from high-quality materials, the HK-006/36-FC provides excellent durability and resistance to mechanical and environmental stress. The optimized internal configuration ensures consistent electrical performance and dependable connections over long-term operation. Precision manufacturing helps minimize maintenance while maintaining high reliability.

The HK-006/36-FC can be used as a primary or supporting component in a wide range of systems. Strict quality control throughout production ensures safety, performance consistency, and long service life. With its balanced combination of reliability, efficiency, and durability, it is well suited for long-term professional use.

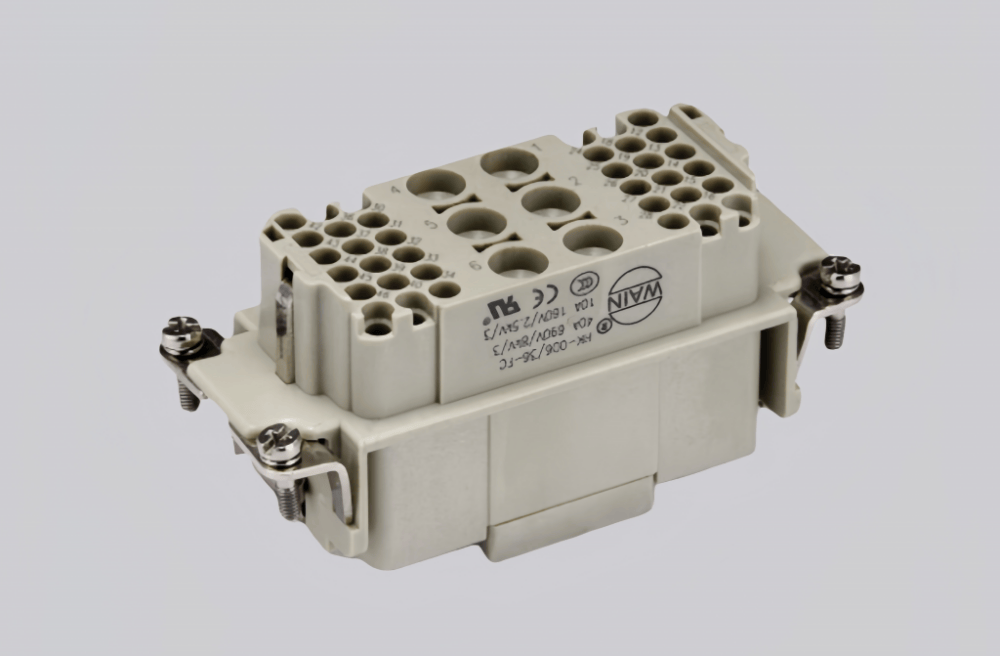

HK-006/36-FC | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HK Insert Series
Male / Female	Female
Connection Type	Crimp connection
Specifications	16B
Number of Connector Contacts	6 + 36
Grounding Contacts	Yes
Rated Current	40A / 10A
Rated Voltage	690V / 160V
Rated Pulse Voltage	8 kV / 2.5 kV
Pollution Degree	3
Insulation Resistance	≥ 10¹⁰ Ω
Working Temperature	-40℃ to +125℃
Mating Cycles	≥ 500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (Light Gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper Alloy
Surface Treatment	Silver-plated / Gold-plated
Contact Resistance	≤ 3 mΩ / ≤ 1 mΩ
Wire Gauge (mm²)	1.5–6 mm² / 0.14–2.5 mm²
Wire Gauge (AWG)	16–10 AWG / 26–14 AWG
Stripping Length	1.5–6 mm² → 9.6 mm 0.14–1.5 mm² → 8 mm 2.5 mm² → 6 mm
Standard	DIN EN 60664 / DIN EN 61984
