HK-006.2/12-M(6-10mm2) | High-Quality Rectangular Connectors

The HK-006.2/12-M (6–10 mm²) is a high-performance product designed for demanding professional and industrial applications. Its compact yet robust structure supports larger conductor cross-sections, allowing for efficient installation and reliable integration into a wide range of power and connection systems.

Manufactured with premium-quality materials, the HK-006.2/12-M provides excellent mechanical strength and long-term durability. The optimized internal design ensures stable and consistent performance under high-load and harsh operating conditions. Precision engineering helps minimize maintenance requirements while maintaining dependable operation.

The HK-006.2/12-M (6–10 mm²) can serve as a primary or supporting component within various systems. Strict quality control throughout production ensures safety, reliability, and consistent quality. With its balanced combination of strength, efficiency, and reliability, it is an ideal solution for long-term professional use.

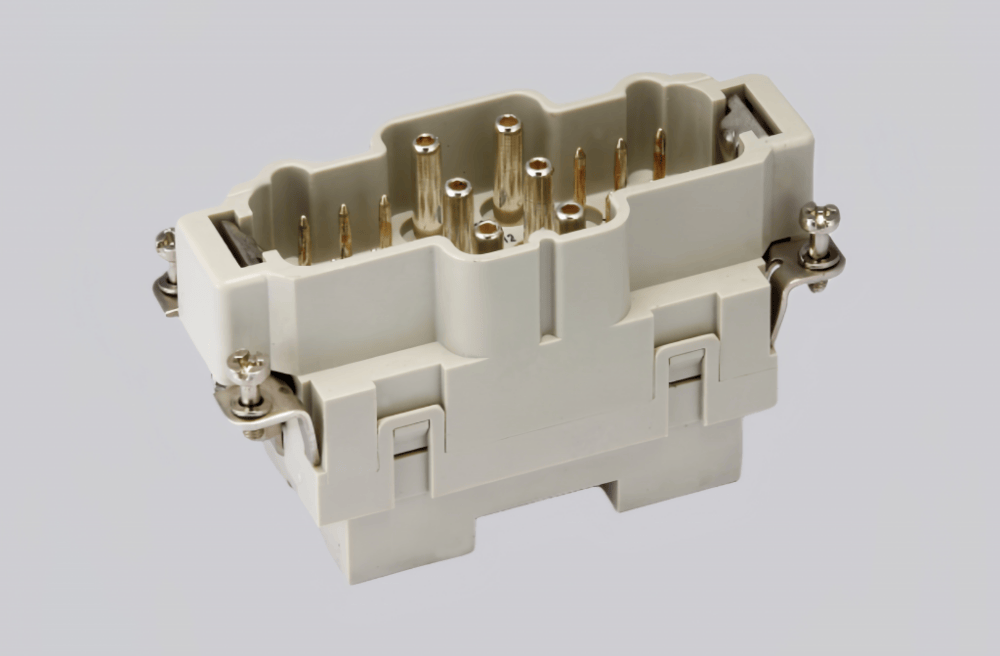

HK-006.2/12-M(6-10mm2) | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HK Insert Series
Male / Female	Male
Connection Type	Axial bolt connection / Screw connection
Specifications	16B
Number of Connector Contacts	6 + 12
Grounding Contacts	Yes
Rated Current	40A / 10A
Rated Voltage	690V / 230V / 400V
Rated Pulse Voltage	6 kV / 4 kV
Pollution Degree	3
Insulation Resistance	≥ 10¹⁰ Ω
Working Temperature	-40℃ to +125℃
Mating Cycles	≥ 500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (Light Gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper Alloy
Surface Treatment	Silver-plated
Contact Resistance	≤ 1 mΩ / ≤ 3 mΩ
Wire Gauge (mm²)	6–10 mm² / 0.2–2.5 mm²
Wire Gauge (AWG)	10–8 AWG / 24–14 AWG
Tightening / Testing Torque	6 mm² → 2 Nm 10 mm² → 2 Nm 0.2–2.5 mm² → 0.8 Nm
Stripping Length	6 mm² → 8 mm⁺¹ 10 mm² → 8 mm⁺¹ 0.2–2.5 mm² → 7.5 mm
Standard	DIN EN 60664 / DIN EN 61984
