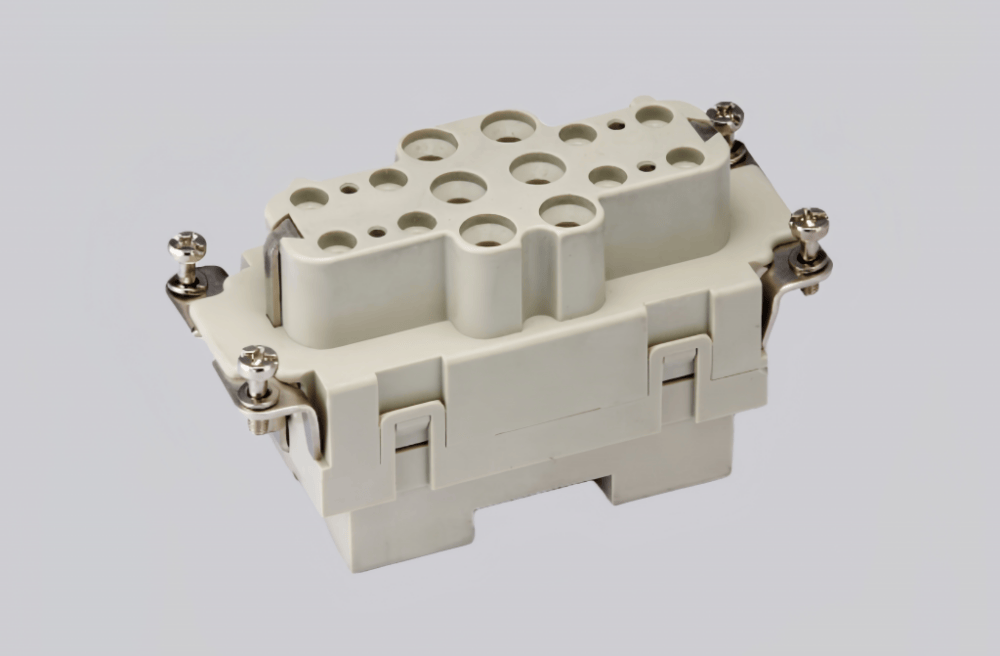

The HK-006.2/12-F (6–10 mm²) is a reliable and high-capacity product developed for demanding professional and industrial applications. Its compact and well-engineered design supports larger conductor cross-sections, enabling efficient installation and secure integration into power and connection systems.
Manufactured using high-quality materials, the HK-006.2/12-F offers excellent durability and resistance to mechanical and environmental stress. The optimized internal structure ensures stable and consistent performance under high-load operating conditions, while precision engineering helps reduce maintenance requirements and extend service life.
The HK-006.2/12-F (6–10 mm²) can be used as either a core or auxiliary component in various systems. Each unit is produced under strict quality control standards to ensure safety, reliability, and long-term performance. With its balanced combination of strength, efficiency, and value, it is well suited for long-term professional use.
Technical Data
| Series | HK Insert Series |
| Male / Female | Female |
| Connection Type | Axial bolt connection / Screw connection |
| Specifications | 16B |
| Number of Connector Contacts | 6 + 12 |
| Grounding Contacts | Yes |
| Rated Current | 40A / 10A |
| Rated Voltage | 690V / 230V / 400V |
| Rated Pulse Voltage | 6 kV / 4 kV |
| Pollution Degree | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤ 3 mΩ / ≤ 1 mΩ |
| Wire Gauge (mm²) | 6–10 mm² / 0.2–2.5 mm² |
| Wire Gauge (AWG) | 10–8 AWG / 24–14 AWG |
| Tightening / Testing Torque | 6 mm² → 2 Nm 10 mm² → 2 Nm |
| Stripping Length | 7.5 mm |
