HK-006.1/12-M(2.5-8mm2) | High-Quality Rectangular Connectors

The HK-006.1/12-M (2.5–8 mm²) is a robust and versatile product designed for modern professional and industrial applications. Its compact and well-engineered structure allows for efficient installation while supporting a wide conductor cross-section range, making it suitable for flexible system designs and upgrades.

Manufactured from high-quality materials, the HK-006.1/12-M ensures excellent durability and resistance to wear and mechanical stress. The optimized internal design provides stable electrical and mechanical performance, even under demanding operating conditions. Precision engineering helps maintain consistent functionality while reducing maintenance requirements.

The HK-006.1/12-M (2.5–8 mm²) can be used as a core or supporting component in various systems. Strict quality control during production guarantees long-term reliability and safety. With its balanced combination of performance, efficiency, and adaptability, it is an ideal choice for long-term professional use.

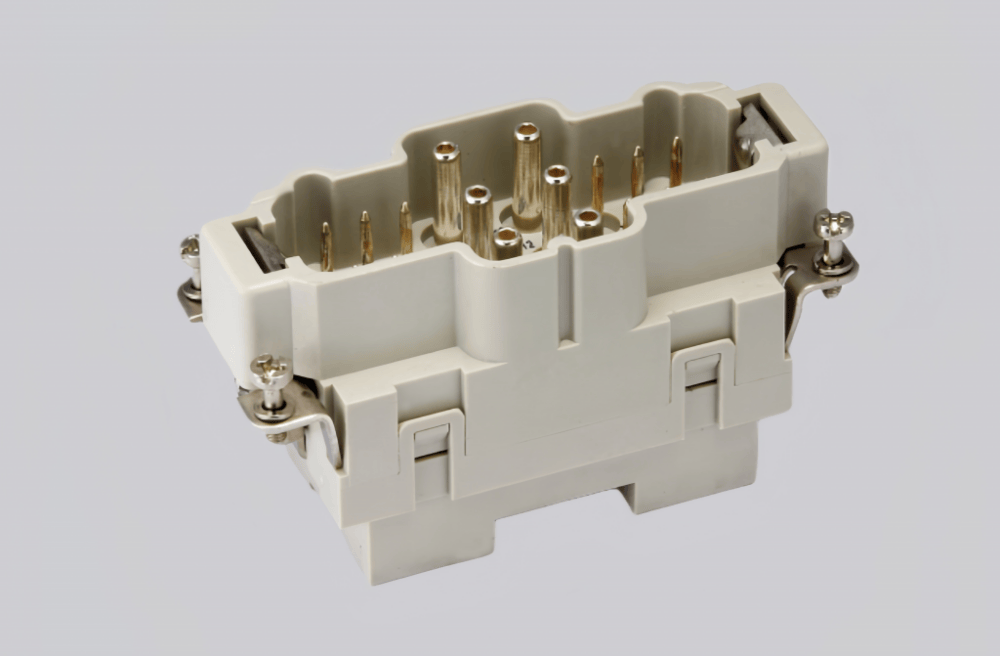

HK-006.1/12-M(2.5-8mm2) | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HK Insert Series
Male / Female	Male
Connection Type	Axial bolt connection / Screw connection
Specifications	16B
Number of Connector Contacts	6 + 12
Grounding Contacts	Yes
Rated Current	40A / 10A
Rated Voltage	690V / 230V / 400V
Rated Pulse Voltage	6 kV / 4 kV
Pollution Degree	3
Insulation Resistance	≥ 10¹⁰ Ω
Working Temperature	-40℃ to +125℃
Mating Cycles	≥ 500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (Light Gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper Alloy
Surface Treatment	Silver-plated
Contact Resistance	≤ 1 mΩ / ≤ 3 mΩ
Wire Gauge (mm²)	2.5–8 mm² / 0.2–2.5 mm²
Wire Gauge (AWG)	26–14 AWG
Tightening / Testing Torque	2.5 mm² → 1.5 Nm 4 mm² → 1.5 Nm 6 mm² → 2 Nm 0.2–2.5 mm² → 0.8 Nm
Stripping Length	2.5 mm² → 5 mm⁺¹ 4 mm² → 5 mm⁺¹ 6 mm² → 8 mm⁺¹ 0.2–2.5 mm² → 7.5 mm
Standard	DIN EN 60664 / DIN EN 61984
