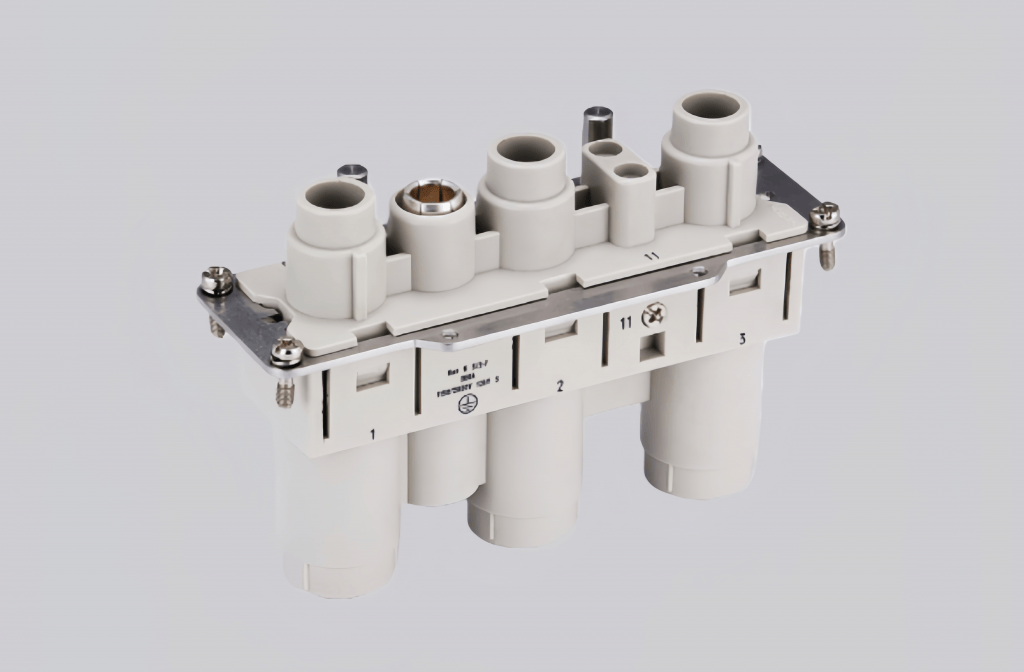

The HK-003/0-F is a high-performance pinless industrial connector designed specifically for harsh-environment applications such as factory automation, power distribution, and precision instrumentation systems. Its robust FC-style locking mechanism ensures a tight and stable connection, making it an ideal choice for vibration-prone industrial settings.
With an IP67 ingress protection rating, this connector effectively resists dust intrusion and temporary water submersion. It also features a 16A rated current and 600V AC/DC rated voltage, which ensures stable power and signal transmission for critical operational tasks. The corrosion-resistant metal housing further enhances its suitability for demanding industrial conditions.
Boasting a compact and lightweight design, the HK-003/0-F allows for easy installation even in space-constrained areas. It operates reliably across a wide temperature range of -40°C to 125°C, achieving a perfect balance between durability and efficiency for industrial connectivity requirements.
Technical Data
| Series | HK insert series |
| Male/female | Female |
| Connection type | Axial bolt connection |
| Specifications | HP |
| Number of connector contacts | 3 |
| Grounding contacts | Yes |
| Rated current | 200A |
| Rated voltage | 1150V; 2000V |
| Rated pulse voltage | 8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤0.2mΩ |
| Wire gauge (mm²) | 35-70mm² |
| Wire gauge (AWG) | 2-00 AWG |
| Tightening/testing torque | 35mm²→8Nm; 50mm²→9Nm; 70mm²→10Nm |
| Stripping length | 22mm |
| Standard | DIN EN 60664; DIN EN 61984 |
