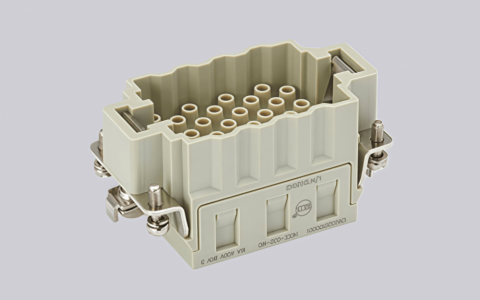

HEEE-032-FC | High-Quality Rectangular Connectors

The HEEE-032-FC is a high-performance heavy-duty electrical connector engineered for stable power and signal transmission in industrial automation lines, power distribution cabinets, and renewable energy storage systems. Constructed with a corrosion-resistant metal-clad housing and high-conductivity silver-plated copper contacts, it offers superior resistance to vibration, thermal shock, and chemical exposure, ensuring long-term reliability in harsh operating environments.

Rated for 32A current and 450V AC/DC, this connector delivers low-loss power transfer for medium-to-heavy load applications, supporting flexible cable-to-panel and wire-to-board configurations. It operates stably across a wide temperature range of -50°C to 130°C and holds an IP66 protection rating, guarding against dust ingress and high-pressure water jets.

Equipped with a precision twist-lock mechanism, the HEEE-032-FC enables tool-free, secure mating and prevents accidental disconnection during operation. Fully compliant with IEC 61984 and RoHS standards, it meets strict global safety and environmental requirements, making it a trusted solution for high-current industrial connectivity needs.

HEEE-032-FC | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HEEE insert series
Connection Type	Crimp connection
Gender	Female
Specifications	10B
Number of Connector Contacts	32
Grounding Contacts	Yes
Rated Current	16A
Rated Voltage	400V
Rated Pulse Voltage	6KV
Pollution Degree	3
Insulation Resistance	≥10¹⁰Ω
Working Temperature	-40℃...+125℃
Mating Cycles	≥500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (light gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper alloy
Surface Treatment	Silver-plated, Gold-plated
Contact Resistance	≤1mΩ
Wire Gauge (mm²)	0.14-4.0mm²
Wire Gauge (AWG)	26-12 AWG
Stripping Length	7.5mm
Standards	DIN EN 60 664, DIN EN 61984
