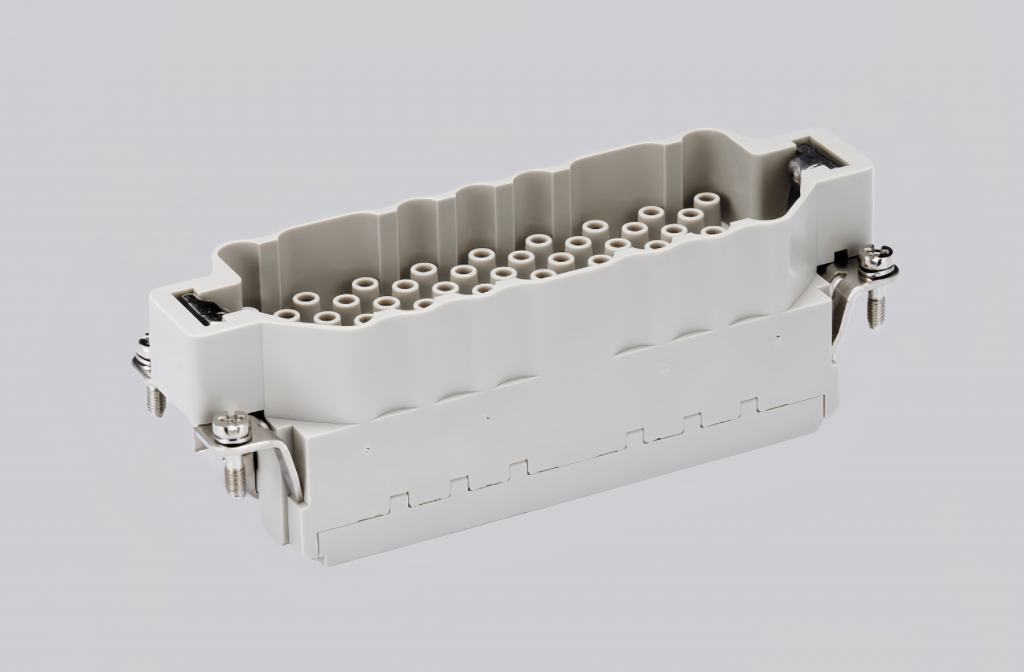

The HEE-064-MC is a high-density heavy-duty electrical connector engineered for simultaneous power and signal transmission in industrial automation, robotics, and large-scale control systems. Built with a rugged reinforced thermoplastic housing and gold-plated copper alloy contacts, it offers exceptional resistance to vibration, chemical corrosion, and thermal cycling, ideal for high-density, harsh operating environments.
Rated for 64A current and 600V AC/DC, this connector ensures low-loss, stable performance for heavy-load applications, supporting both wire-to-board and panel-mount configurations. It operates reliably across a wide temperature range of -50°C to 140°C and holds an IP67 ingress protection rating, guarding against dust and temporary water submersion.
Equipped with a secure twist-lock mechanism, the HEE-064-MC enables tool-free, one-handed mating and prevents accidental disconnection during operation. Fully compliant with IEC 61984 and RoHS standards, it meets strict global safety and environmental regulations, making it a reliable solution for high-current, high-density connectivity needs.
Technical Data
| Series | HEE insert series |
| Connection Type | Crimp connection |
| Gender | Male |
| Specifications | 24B, 48B |
| Number of Connector Contacts | 64 |
| Grounding Contacts | Yes |
| Rated Current | 16A |
| Rated Voltage | 500V |
| Rated Pulse Voltage | 6KV |
| Pollution Degree | 3 |
| Parameters at Pollution Degree 2 | 16A, 830V, 8KV, 2 |
| Rated Voltage (UL/CSA) | 600V |
| Insulation Resistance | ≥10¹⁰Ω |
| Operating Temperature | -40℃...+125℃ |
| Mating Cycles | ≥500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (light gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper alloy |
| Surface Treatment | Silver-plated, Gold-plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge (mm²) | 0.14-4.0mm² |
| Wire Gauge (AWG) | 26-12 AWG |
| Stripping Length | 7.5mm |
| Standards | DIN EN 60 664, DIN EN 61984 |
