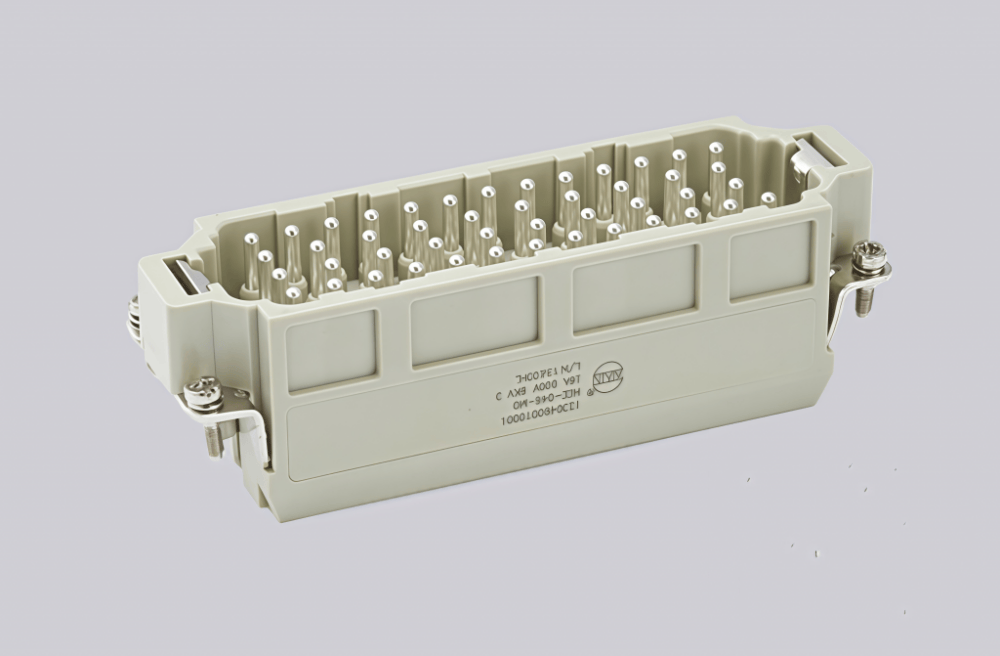

The HEE-046-MQ is a heavy-duty electrical connector engineered for high-power transmission in industrial automation, renewable energy, and heavy machinery sectors. Built with a robust, high-strength metal shell, it offers superior resistance to vibration, shock, and chemical corrosion, adapting to the most rigorous operating conditions.
Rated for 30A current and 600V AC/DC, this connector guarantees low-contact-resistance performance for long-term stable operation. It supports both panel-mount and cable-mount configurations, with an operating temperature range spanning -55°C to 150°C and an IP68 ingress protection rating for dust-tight and prolonged water submersion protection.
Equipped with a quick-locking bayonet coupling design, the HEE-046-MQ enables fast, tool-free mating and unmating while ensuring a secure connection against accidental disengagement. Fully compliant with IEC 61984 and RoHS directives, it meets global safety and environmental standards, making it a reliable solution for high-demand power connection needs.

Technical Data
| Series | HEE insert series |
| Connection type | Spring connection (quick connection) |
| Male/female | Male |
| Specifications | 24B;48B |
| Number of connector contacts | 46 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 16A 830V 8KV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.5-2.5mm² |
| Wire gauge (AWG) | 20-14 AWG |
| Stripping length | 9-10mm |
| Standard | DIN EN 60 664;DIN EN 61984 |
