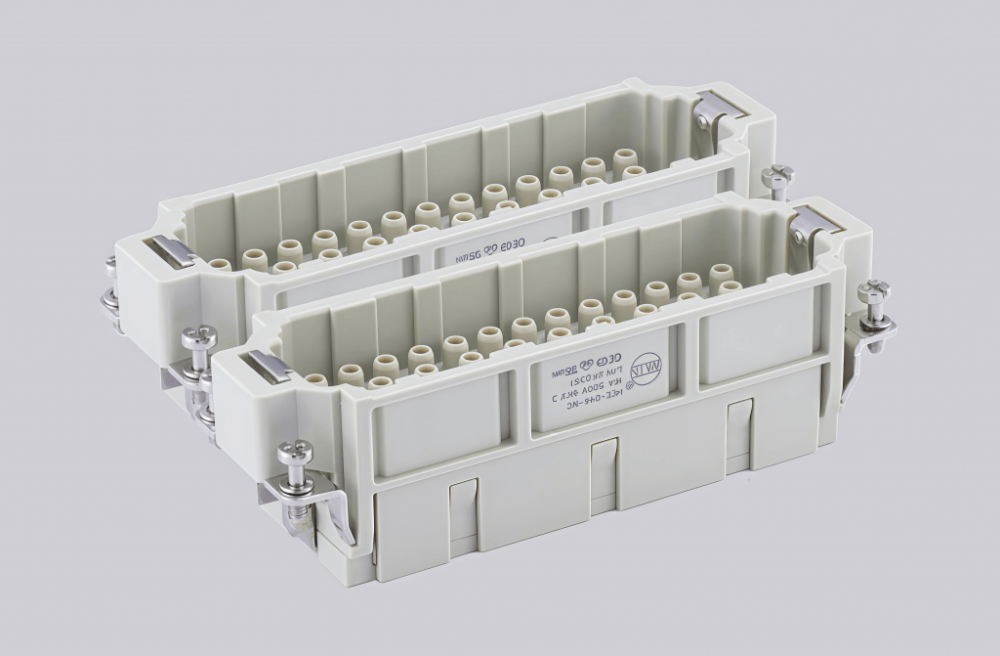

HEE-046-MC(47-92) | High-Quality Rectangular Connectors

The HEE-046-MC(47-92) is a heavy-duty, high-current electrical connector tailored for high-power industrial applications such as renewable energy inverters, heavy machinery control systems, and power distribution units. Built with a reinforced zinc alloy housing and high-conductivity copper contacts, it delivers exceptional resistance to vibration, thermal shock, and chemical corrosion, suitable for the most demanding operating environments.

Rated for 47A current and 920V AC/DC, this connector ensures low-loss, stable power transmission for heavy-load equipment, outperforming standard models in high-voltage scenarios. It supports both panel-mount and cable-mount configurations, with an operating temperature range of -55°C to 150°C and an IP68 rating that provides full protection against dust and prolonged water submersion up to 2 meters.

Equipped with a bayonet quick-locking design, the HEE-046-MC(47-92) enables tool-free, fast mating and unmating while preventing accidental disengagement. Fully compliant with IEC 61984 and RoHS standards, it meets global safety and environmental regulations, making it a top-tier solution for high-voltage, high-current connectivity needs.

HEE-046-MC(47-92) | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HEE insert series
Connection Type	Crimp connection
Gender	Male
Specifications	24B, 48B
Number of Connector Contacts	46
Grounding Contacts	Yes
Rated Current	16A
Rated Voltage	500V
Rated Pulse Voltage	6KV
Pollution Degree	3
Parameters at Pollution Degree 2	16A 830V 8KV 2
Rated Voltage (UL/CSA Standard)	600V
Insulation Resistance	≥10¹⁰Ω
Operating Temperature	-40℃...+125℃
Mating Cycles	≥500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (light gray)
Flame Retardant Rating (UL94 Standard)	V0
Contact Material	Copper alloy
Surface Treatment	Silver-plated, Gold-plated
Contact Resistance	≤1mΩ
Wire Gauge	0.14-4.0mm² / 26-12 AWG
Stripping Length	7.5mm
Compliance Standards	DIN EN 60 664, DIN EN 61984
