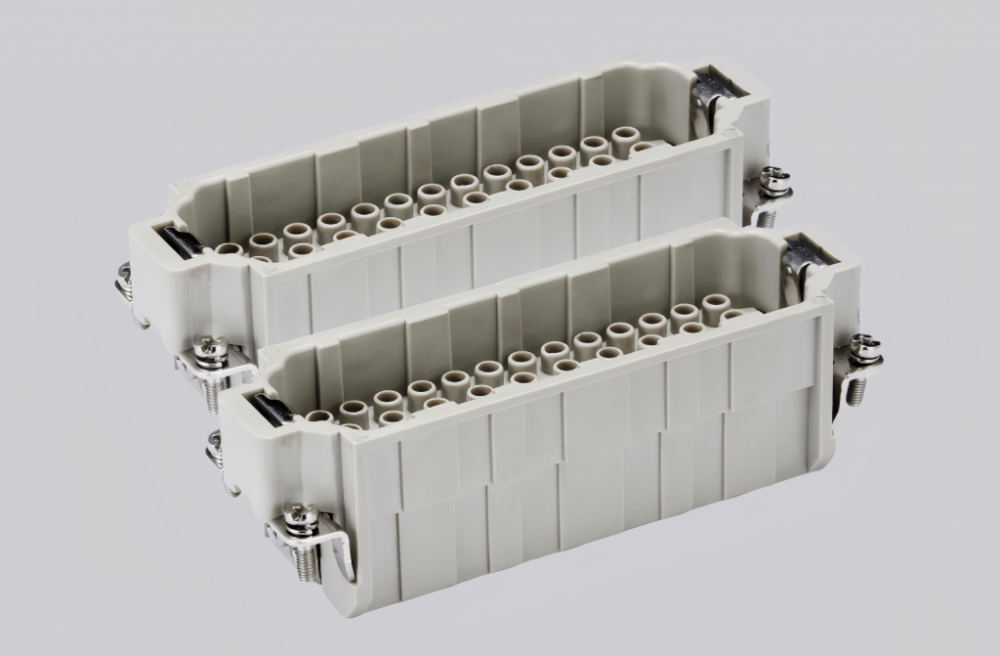

HEE-046-MC/N(47-92) | High-Quality Rectangular Connectors

The HEE-046-MC/N(47-92) is a high-voltage multi-core heavy-duty connector engineered for integrated power and signal transmission in industrial control cabinets, heavy machinery junction systems, and high-voltage automation lines. Built with a reinforced polycarbonate housing and hard-silver plated copper alloy contacts, it delivers exceptional resistance to vibration, chemical corrosion, and thermal aging, ensuring stable operation in harsh, high-demand industrial settings.

This 46+PE core connector is rated for 47A current and 920V AC/DC, supporting low-loss transmission for heavy-load high-voltage applications. It adopts crimp termination, compatible with 0.14–4.0mm² wires, and operates reliably across a temperature range of -40°C to 125°C with a UL94 V-0 flame retardant rating for enhanced safety.

Equipped with a precision anti-loosening positioning structure, it supports over 500 mating cycles and prevents accidental disconnection effectively. Fully compliant with IEC 61984 and RoHS standards, it meets strict global safety and environmental requirements, making it a trusted solution for high-voltage multi-circuit connectivity scenarios.

HEE-046-MC/N(47-92) | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HEE insert series
Connection Type	Crimp connection
Gender	Male
Specifications	24B, 48B
Number of Connector Contacts	46
Grounding Contacts	Yes
Rated Current	16A
Rated Voltage	500V
Rated Pulse Voltage	6KV
Pollution Degree	3
Parameters at Pollution Degree 2	16A, 830V, 8KV, 2
Rated Voltage (UL/CSA)	600V
Insulation Resistance	≥10¹⁰Ω
Operating Temperature	-40℃...+125℃
Mating Cycles	≥500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (light gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper alloy
Surface Treatment	Silver-plated, Gold-plated
Contact Resistance	≤1mΩ
Wire Gauge (mm²)	0.14-4.0mm²
Wire Gauge (AWG)	26-12 AWG
Stripping Length	7.5mm
Standards	DIN EN 60 664, DIN EN 61984
