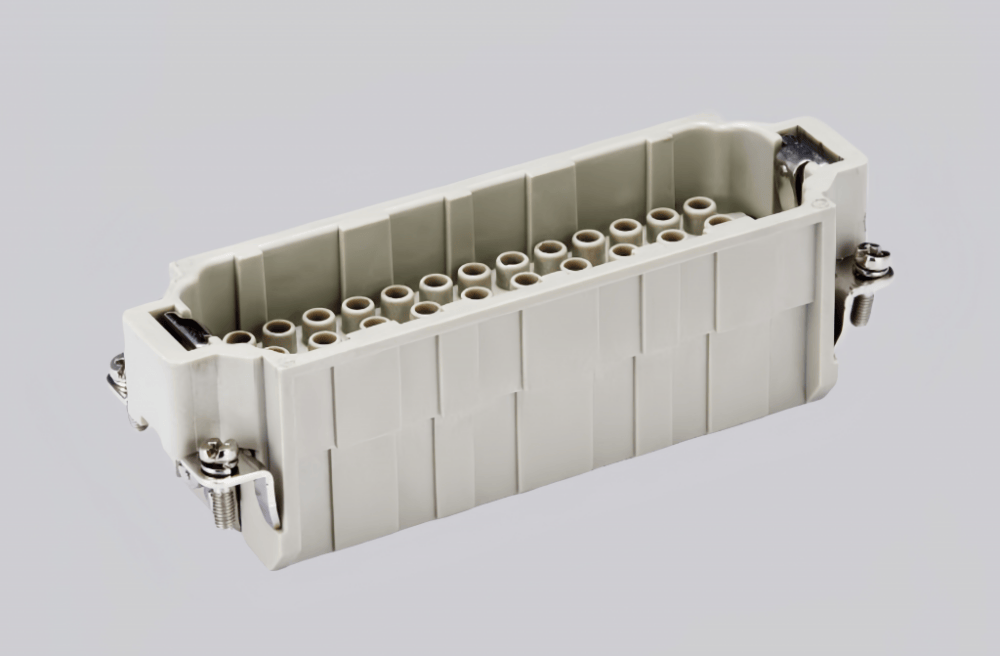

HEE-046-MC/N | High-Quality Rectangular Connectors

The HEE-046-MC/N is a multi-core heavy-duty electrical connector designed for integrated power and signal transmission in industrial control cabinets, mechanical equipment junction boxes and automation production lines. It adopts a polycarbonate housing and hard-silver plated copper alloy contacts, which can resist vibration, chemical corrosion and thermal aging, ensuring stable operation in complex industrial settings.

This 46+PE core connector has a rated current of 16A and a rated voltage of 500V AC/DC, with a rated voltage of 600V AC/DC complying with UL/CSA standards. It uses crimp termination, fits 0.14 - 4.0mm² wires, and has a contact resistance of less than 1mΩ, enabling low-loss transmission. It works stably at -40°C to 125°C and has a UL94 V-0 flame retardant rating for high safety.

Equipped with a reliable positioning structure, it has a mating cycle of over 500 times and avoids accidental disconnection effectively. Fully compliant with IEC 61984 and RoHS standards, it meets global industrial safety and environmental requirements, making it a trustworthy choice for medium-load multi-circuit connectivity scenarios.

HEE-046-MC/N | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HEE insert series
Connection Type	Crimp connection
Gender	Male
Specifications	24B, 48B
Number of Connector Contacts	46
Grounding Contacts	Yes
Rated Current	16A
Rated Voltage	500V
Rated Pulse Voltage	6KV
Pollution Degree	3
Parameters at Pollution Degree 2	16A, 830V, 8KV, 2
Rated Voltage (UL/CSA)	600V
Insulation Resistance	≥10¹⁰Ω
Operating Temperature	-40℃...+125℃
Mating Cycles	≥500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (light gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper alloy
Surface Treatment	Silver-plated, Gold-plated
Contact Resistance	≤1mΩ
Wire Gauge (mm²)	0.14-4.0mm²
Wire Gauge (AWG)	26-12 AWG
Stripping Length	7.5mm
Standards	DIN EN 60 664, DIN EN 61984
