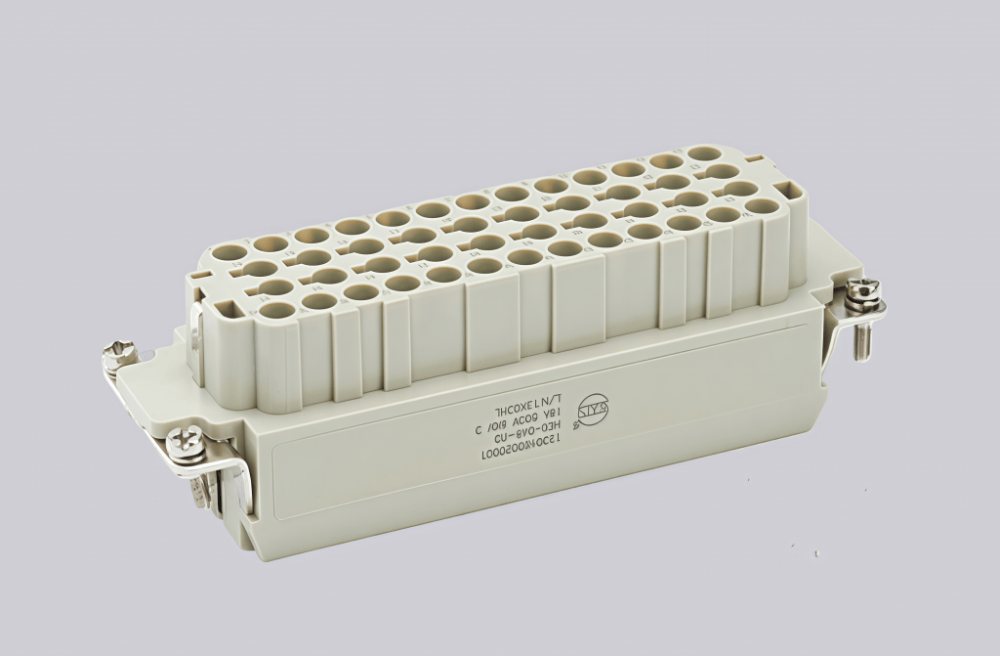

HEE-046-FQ | High-Quality Rectangular Connectors

The HEE-046-FQ is a high-reliability heavy-duty electrical connector optimized for power distribution in industrial automation, renewable energy systems, and heavy-duty equipment. Constructed with a reinforced metal alloy shell, it delivers excellent resistance to vibration, impact, and chemical erosion, ensuring stable performance in harsh, mission-critical environments.

Rated for a current of 30A and voltage of 600V AC/DC, this connector supports low-loss power transmission for continuous operation. It features a dual-mount design compatible with both panel and cable installations, with an extended operating temperature range of -55°C to 150°C and an IP68 rating for full protection against dust and prolonged water submersion.

Integrated with a precision bayonet locking system, the HEE-046-FQ enables fast, tool-free mating and prevents accidental disconnection. Fully compliant with IEC 61984 and RoHS standards, it meets strict global safety and environmental requirements, serving as a dependable choice for high-power connection applications.

HEE-046-FQ | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HEE insert series
Connection type	Spring connection (quick connection)
Male/female	Female
Specifications	24B；48B
Number of connector contacts	46
Grounding contacts	Yes
Rated current	16A
Rated voltage	500V
Rated pulse voltage	6KV
Class of pollution	3
Parameters when class of pollution is 2	16A 830V 8KV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated
Contact resistance	≤3mΩ
Wire gauge (mm²)	0.5-2.5mm²
Wire gauge (AWG)	20-14 AWG
Stripping length	9-10mm
Standard	DIN EN 60 664；DIN EN 61984
