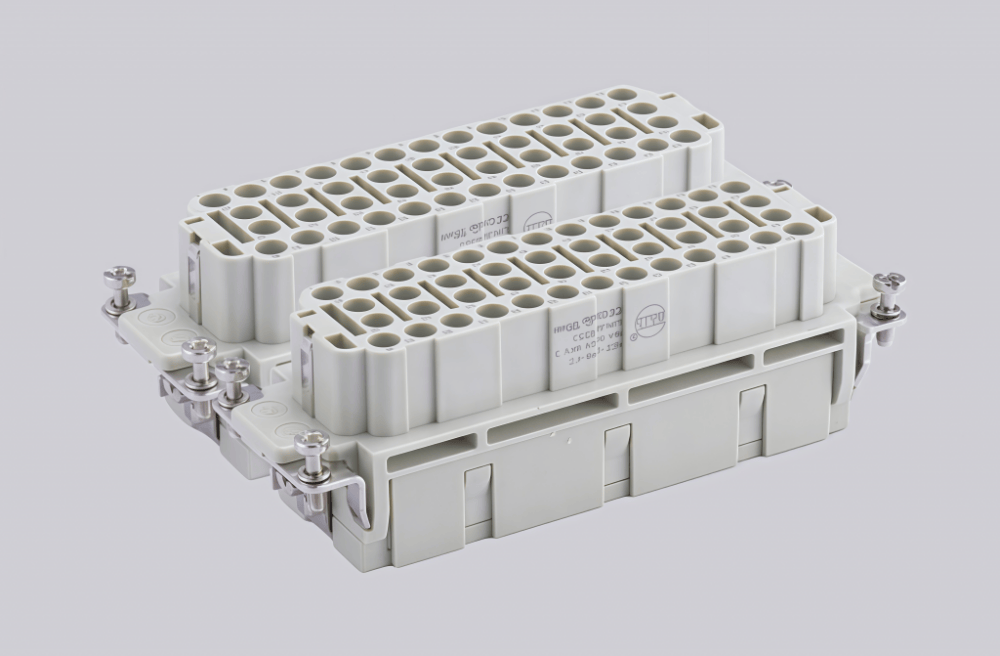

The HEE-046-FC(47-92) is a heavy-duty high-voltage electrical connector engineered for mission-critical applications including renewable energy grid systems, heavy machinery power units, and industrial high-voltage distribution setups. Constructed with a corrosion-resistant zinc alloy housing and silver-plated copper contacts, it provides superior resistance to vibration, chemical erosion, and thermal cycling, ensuring reliable performance in harsh operating conditions.
Rated for 47A current and 920V AC/DC, this connector delivers low-loss, stable power transmission for heavy-load high-voltage equipment, outperforming standard connectors in extreme voltage scenarios. It supports flexible panel-mount and cable-mount configurations, with an operating temperature range of -55°C to 150°C and an IP68 rating that shields against dust and prolonged water submersion up to 2 meters.
Featuring a precision bayonet quick-locking mechanism, the HEE-046-FC(47-92) enables tool-free, fast mating and unmating while preventing accidental disconnection. Fully compliant with IEC 61984 and RoHS standards, it meets strict global safety and environmental requirements, making it a premium solution for high-voltage, high-current connectivity demands.
Technical Data
| Series | HEE insert series |
| Connection Type | Crimp connection |
| Gender | Female |
| Specifications | 24B, 48B |
| Number of Connector Contacts | 46 |
| Grounding Contacts | Yes |
| Rated Current | 16A |
| Rated Voltage | 500V |
| Rated Pulse Voltage | 6KV |
| Pollution Degree | 3 |
| Parameters at Pollution Degree 2 | 16A 830V 8KV 2 |
| Rated Voltage (UL/CSA Standard) | 600V |
| Insulation Resistance | ≥10¹⁰Ω |
| Operating Temperature | -40℃...+125℃ |
| Mating Cycles | ≥500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (light gray) |
| Flame Retardant Rating (UL94 Standard) | V0 |
| Contact Material | Copper alloy |
| Surface Treatment | Silver-plated, Gold-plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge | 0.14-4.0mm² / 26-12 AWG |
| Stripping Length | 7.5mm |
| Compliance Standards | DIN EN 60 664, DIN EN 61984 |
