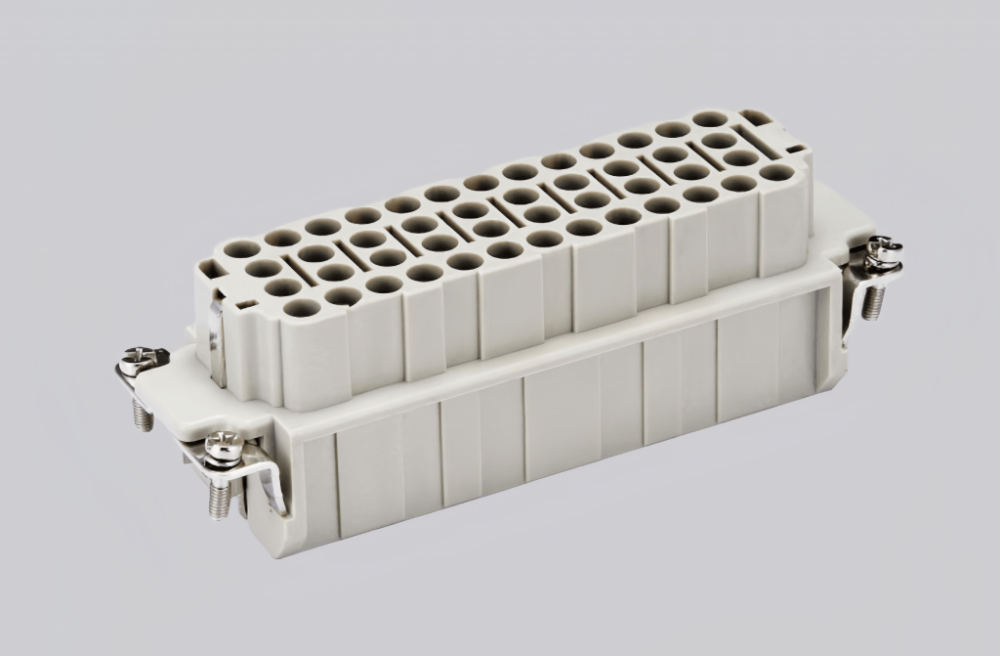

HEE-046-FC/N | High-Quality Rectangular Connectors

The HEE-046-FC/N is a high-integration multi-core heavy-duty connector tailored for synchronized power and signal transmission in industrial control cabinets, mechanical equipment junction boxes, and automated production lines. Constructed with a flame-retardant polycarbonate housing and hard-silver plated copper alloy contacts, it resists vibration, chemical corrosion, and thermal aging, ensuring consistent performance in complex industrial environments.

This 46+PE core connector features a rated current of 16A and a rated voltage of 500V AC/DC (600V AC/DC compliant with UL/CSA standards). It adopts crimp termination, compatible with 0.14–4.0mm² wires, and boasts a contact resistance of less than 1mΩ for low-loss transmission. Operating stably from -40°C to 125°C, it holds a UL94 V-0 flame retardant rating for enhanced safety.

Equipped with a precision anti-loosening positioning structure, it supports over 500 mating cycles and prevents accidental disconnection effectively. Fully compliant with IEC 61984 and RoHS standards, it meets global industrial safety and environmental requirements, serving as a reliable solution for medium-load multi-circuit connectivity scenarios.

HEE-046-FC/N | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HEE insert series
Connection Type	Crimp connection
Gender	Female
Specifications	24B, 48B
Number of Connector Contacts	46
Grounding Contacts	Yes
Rated Current	16A
Rated Voltage	500V
Rated Pulse Voltage	6KV
Pollution Degree	3
Parameters at Pollution Degree 2	16A, 830V, 8KV, 2
Rated Voltage (UL/CSA)	600V
Insulation Resistance	≥10¹⁰Ω
Operating Temperature	-40℃...+125℃
Mating Cycles	≥500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (light gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper alloy
Surface Treatment	Silver-plated, Gold-plated
Contact Resistance	≤1mΩ
Wire Gauge (mm²)	0.14-4.0mm²
Wire Gauge (AWG)	26-12 AWG
Stripping Length	7.5mm
Standards	DIN EN 60 664, DIN EN 61984
