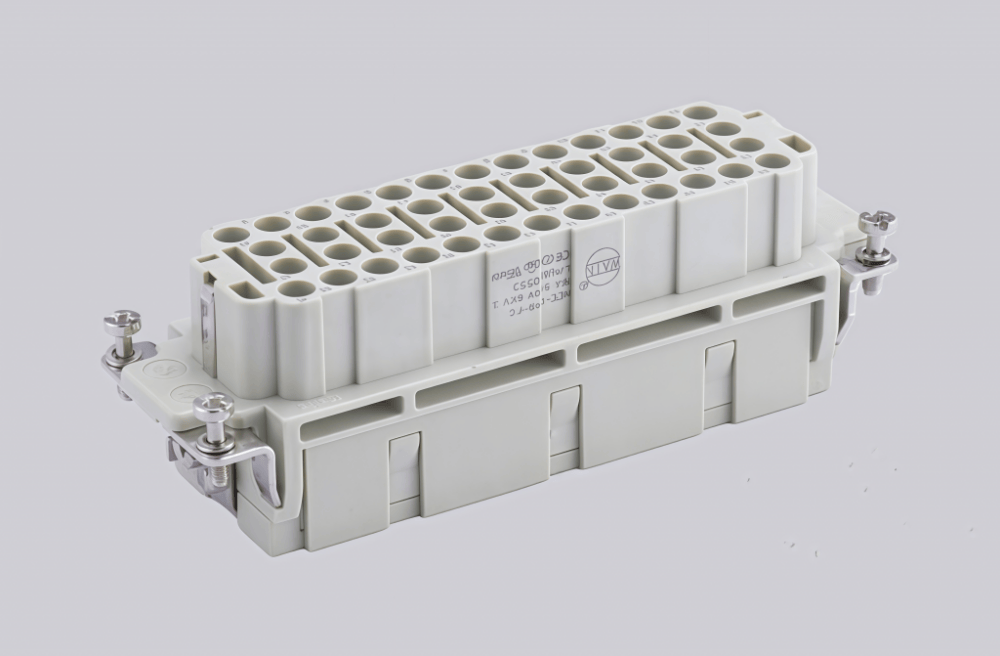

HEE-046-FC | High-Quality Rectangular Connectors

The HEE-046-FC is a heavy-duty high-current electrical connector optimized for power-hungry applications like industrial automation, renewable energy grid systems, and heavy machinery. Built with a corrosion-resistant zinc alloy housing and high-conductivity silver-plated contacts, it excels in withstanding vibration, shock, and chemical exposure, ensuring long-lasting performance in harsh operating conditions.

Rated for 40A current and 600V AC/DC, this connector delivers low-resistance, stable power transmission for high-load equipment. It supports flexible panel-mount and cable-mount configurations, with an extended operating temperature range of -55°C to 150°C and an IP68 rating that provides full protection against dust and prolonged water submersion up to 2 meters.

Featuring a precision bayonet quick-locking mechanism, the HEE-046-FC enables tool-free, fast mating and unmating while preventing accidental disconnection. Fully compliant with IEC 61984 and RoHS standards, it meets strict global safety and environmental requirements, making it a reliable solution for critical high-power connectivity needs.

HEE-046-FC | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HEE insert series
Connection type	Crimp connection
Male/female	Female
Specifications	24B；48B
Number of connector contacts	46
Grounding contacts	Yes
Rated current	16A
Rated voltage	500V
Rated pulse voltage	6KV
Class of pollution	3
Parameters when class of pollution is 2	16A 830V 8KV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated; Gold-plated
Contact resistance	≤1mΩ
Wire gauge (mm²)	0.14 - 4.0mm²
Wire gauge (AWG)	26 - 12 AWG
Stripping length	7.5mm
Standard	DIN EN 60 664；DIN EN 61984
