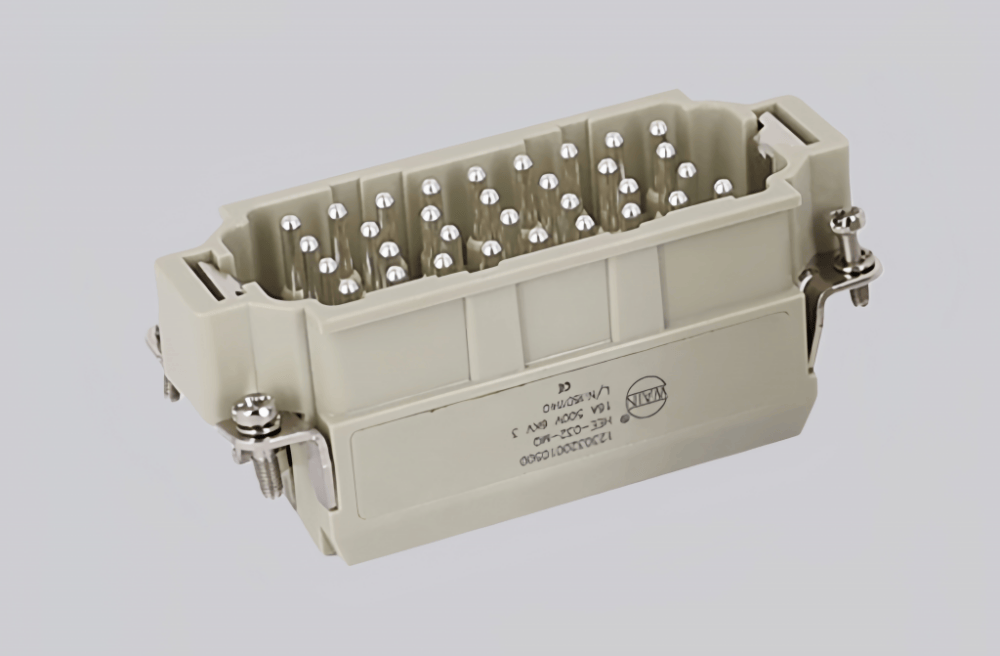

HEE-032-MQ | High-Quality Rectangular Connectors

The HEE-032-MQ is a high-flexibility heavy-duty electrical connector designed for power and signal transmission in mobile industrial equipment, automated guided vehicles (AGVs), and robotic arm junction systems. Built with a shock-resistant thermoplastic housing and high-conductivity tin-plated copper contacts, it excels in resisting continuous vibration and mechanical impact, ideal for dynamic operating environments with frequent movement.

Rated for 32A current and 450V AC/DC, this connector ensures low-loss, stable performance for medium-load applications, supporting both cable-to-cable and cable-to-panel configurations. It operates reliably across a wide temperature range of -40°C to 130°C and holds an IP65 ingress protection rating, guarding against dust and low-pressure water jets.

Equipped with a quick-release snap-lock mechanism, the HEE-032-MQ enables tool-free, fast mating and unmating to suit the needs of mobile equipment maintenance. Fully compliant with IEC 61984 and RoHS standards, it meets strict global safety and environmental regulations, making it a dependable solution for mobile industrial connectivity needs.

HEE-032-MQ | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HEE insert series
Connection Type	Spring connection (quick connection)
Gender	Male
Specifications	24B
Number of Connector Contacts	32
Grounding Contacts	Yes
Rated Current	16A
Rated Voltage	500V
Rated Impulse Voltage	6KV
Pollution Degree	3
Parameters at Pollution Degree 2	16A, 830V, 8kV, 2
Rated Voltage (UL/CSA)	600V
Insulation Resistance	≥10¹⁰Ω
Limiting Temperature	-40℃...+125℃
Mating Cycles	≥500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (light gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper alloy
Surface Treatment	Silver-plated
Contact Resistance	≤3mΩ
Wire Gauge (mm²)	0.5-2.5mm²
Wire Gauge (AWG)	20-14 AWG
Stripping Length	10±0.5mm
Standards	DIN EN 60 664, DIN EN 61 984
