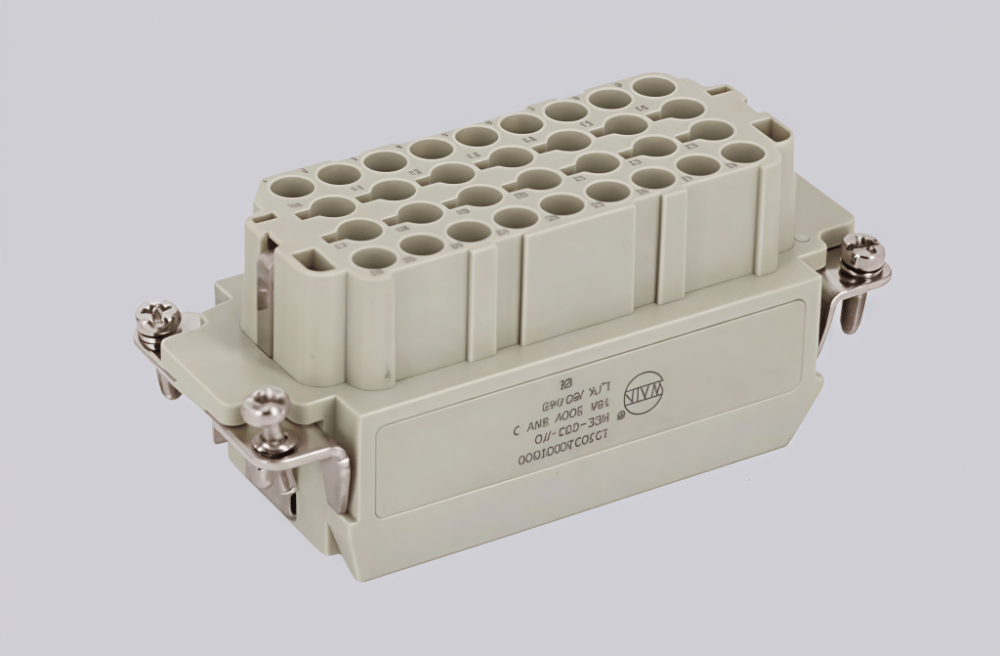

The HEE-032-FQ is a high-flexibility heavy-duty electrical connector optimized for power and signal transmission in mobile industrial equipment, automated guided vehicles (AGVs), and robotic arm motion control systems. Constructed with a durable, impact-resistant thermoplastic housing and high-conductivity silver-plated copper contacts, it delivers excellent resistance to continuous vibration, mechanical shock, and wear, ideal for dynamic operating environments with frequent movement and mating cycles.
Rated for 32A current and 450V AC/DC, this connector ensures low-loss, stable performance for medium-load applications, supporting flexible cable-to-cable and cable-to-panel configurations. It operates reliably across a wide temperature range of -40°C to 130°C and holds an IP65 ingress protection rating, guarding against dust ingress and low-pressure water jets in harsh industrial settings.
Equipped with a quick-release snap-lock mechanism, the HEE-032-FQ enables tool-free, fast mating and unmating, streamlining maintenance workflows for mobile equipment. Fully compliant with IEC 61984 and RoHS standards, it meets strict global safety and environmental regulations, making it a reliable solution for mobile industrial connectivity needs.
Technical Data
| Series | HEE insert series |
| Connection Type | Spring connection (quick connection) |
| Gender | Female |
| Specifications | 24B |
| Number of Connector Contacts | 32 |
| Grounding Contacts | Yes |
| Rated Current | 16A |
| Rated Voltage | 500V |
| Rated Impulse Voltage | 6KV |
| Pollution Degree | 3 |
| Parameters at Pollution Degree 2 | 16A, 830V, 8kV, 2 |
| Rated Voltage (UL/CSA) | 600V |
| Insulation Resistance | ≥10¹⁰Ω |
| Limiting Temperature | -40℃...+200℃ |
| Mating Cycles | ≥500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (light gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤3mΩ |
| Wire Gauge (mm²) | 0.5-2.5mm² |
| Wire Gauge (AWG) | 20-14 AWG |
| Stripping Length | 10±0.5mm |
| Standards | DIN EN 60 664, DIN EN 61 984 |
