HEE-032-FC(33-64) | High-Quality Rectangular Connectors

The HEE-032-FC(33-64) is a high-density multi-circuit heavy-duty connector built for integrated power and signal transmission in packaging printing machinery, textile equipment, and electric locomotive electrical systems. It adopts a flame-retardant polycarbonate housing and gold or silver-plated copper alloy contacts, which can resist vibration and thermal aging, ensuring reliable operation in industrial grade 3 pollution environments.

This 32+PE core connector has a rated current of 16A and a rated voltage of 500V AC/DC (600V AC/DC compliant with UL/CSA standards). It uses cold crimp termination, fits 0.14 - 4.0mm² wires, and has an insulation resistance of ≥10¹⁰Ω plus contact resistance ≤1mΩ for efficient and stable transmission. Operating stably from -40°C to 125°C, it holds a UL94 V-0 flame retardant rating for high safety.

Equipped with a sturdy locking structure, it supports no less than 500 mating cycles and effectively prevents accidental disconnection. Fully compliant with IEC 61984 and RoHS standards, it meets global industrial safety and environmental norms, making it an ideal choice for medium-load multi-circuit connectivity scenarios.

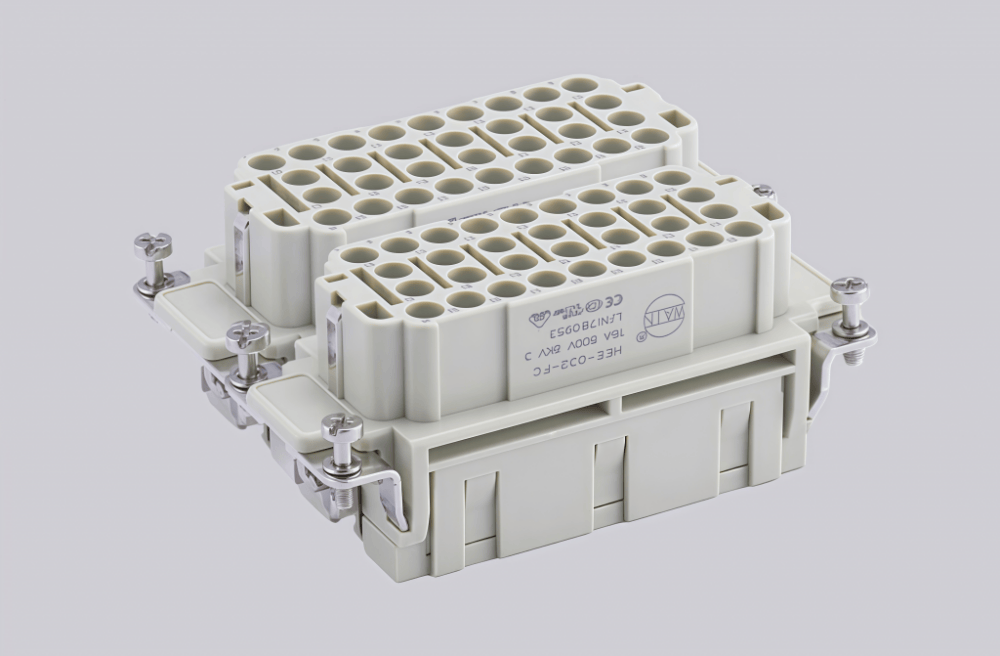

HEE-032-FC(33-64) | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HEE insert series
Connection Type	Crimp connection
Gender	Female
Specifications	16B, 32B
Number of Connector Contacts	32
Grounding Contacts	Yes
Rated Current	16A
Rated Voltage	500V
Rated Pulse Voltage	6KV
Pollution Degree	3
Parameters at Pollution Degree 2	16A, 830V, 8KV, 2
Rated Voltage (UL/CSA)	600V
Insulation Resistance	≥10¹⁰Ω
Operating Temperature	-40℃...+125℃
Mating Cycles	≥500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (light gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper alloy
Surface Treatment	Silver-plated, Gold-plated
Contact Resistance	≤1mΩ
Wire Gauge (mm²)	0.14-4.0mm²
Wire Gauge (AWG)	26-12 AWG
Stripping Length	7.5mm
Standards	DIN EN 60 664, DIN EN 61984
