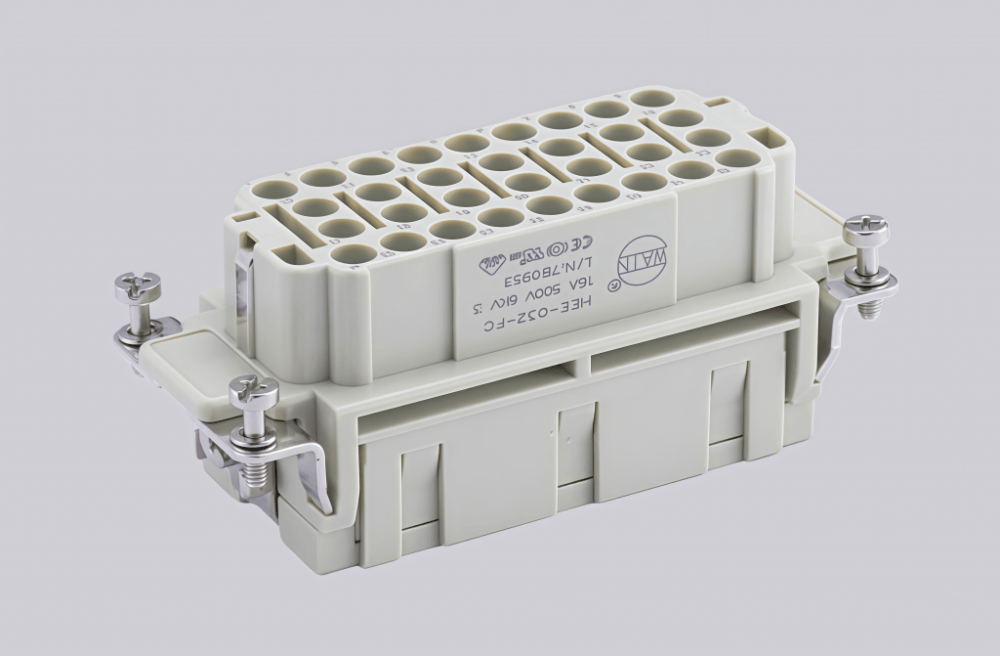

HEE-032-FC | High-Quality Rectangular Connectors

The HEE-032-FC is a robust high-power electrical connector engineered for power distribution in industrial automation, renewable energy inverters, and heavy-duty power units. Built with a corrosion-resistant metal-clad housing and high-conductivity tin-plated contacts, it delivers exceptional durability against vibration, thermal cycling, and chemical exposure, ideal for harsh operating environments.

Rated for 32A current and 450V AC/DC, this connector ensures low-resistance, stable power transmission for heavy-load applications. It supports flexible cable-to-panel and wire-to-board installations, with an operating temperature range of -50°C to 130°C and an IP66 rating that provides full protection against dust and high-pressure water jets.

Featuring a precision twist-lock mechanism, the HEE-032-FC enables tool-free, secure mating that prevents accidental disconnection during operation. Fully compliant with RoHS and IEC 61984 standards, it meets strict global safety and environmental requirements, making it a trusted solution for high-current connectivity demands.

HEE-032-FC | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HEE insert series
Connection type	Crimp connection
Male/female	Female
Specifications	16B；32B
Number of connector contacts	32
Grounding contacts	Yes
Rated current	16A
Rated voltage	500V
Rated pulse voltage	6KV
Class of pollution	3
Parameters when class of pollution is 2	16A 830V 8KV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated; Gold-plated
Contact resistance	≤1mΩ
Wire gauge (mm²)	0.14-4.0mm²
Wire gauge (AWG)	26-12 AWG
Stripping length	7.5mm
Standard	DIN EN 60 664；DIN EN 61984
