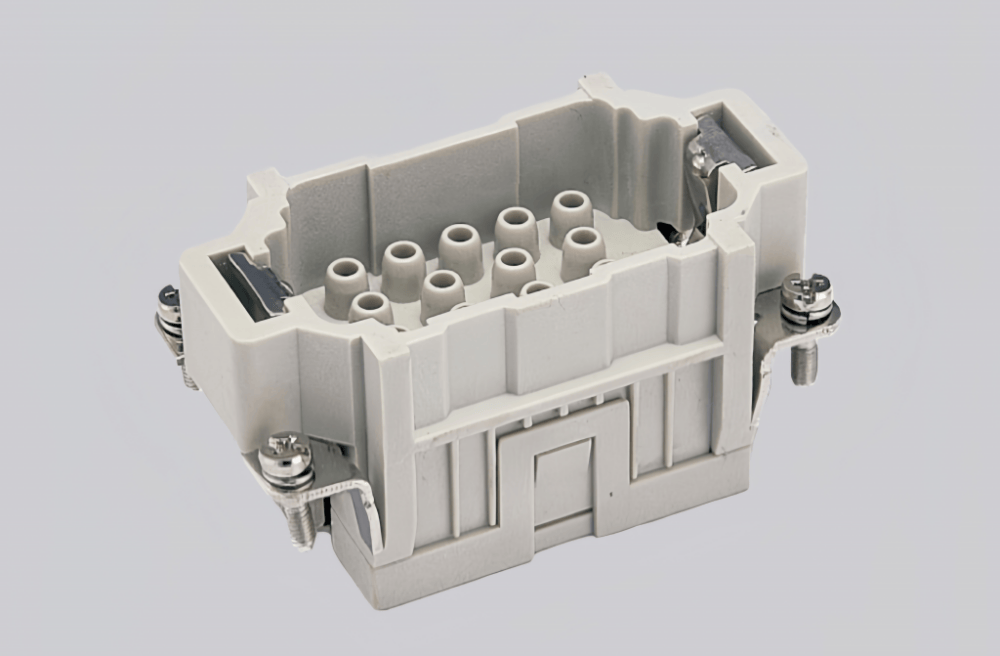

HEE-018-MC | High-Quality Rectangular Connectors

The HEE-018-MC is a versatile medium-duty electrical connector engineered for balanced signal and power transmission in industrial control, test and measurement, and automotive electronics systems. Built with a sturdy thermoset housing and plated copper contacts, it offers enhanced resistance to heat aging and electrical interference, suitable for compact, high-density installation environments.

Rated for 18A current and 300V AC/DC, this connector delivers consistent performance for mixed-signal applications, minimizing signal attenuation and power loss. It supports wire-to-board and cable-to-panel configurations, with an operating temperature range of -40°C to 120°C and an IP65 rating that guards against dust ingress and low-pressure water jets.

Equipped with a push-pull locking design, the HEE-018-MC enables secure, tool-free mating and prevents accidental disconnection during operation. Fully compliant with RoHS and IEC 61076-2-101 standards, it meets global industry requirements, making it a reliable choice for mid-range connectivity needs.

HEE-018-MC | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HEE insert series
Connection type	Crimp connection
Male/female	Male
Specifications	10B
Number of connector contacts	18
Grounding contacts	Yes
Rated current	16A
Rated voltage	500V
Rated pulse voltage	6KV
Class of pollution	3
Parameters when class of pollution is 2	16A 830V 8KV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated; Gold-plated
Contact resistance	≤1mΩ
Wire gauge (mm²)	0.14-4.0mm²
Wire gauge (AWG)	26-12 AWG
Stripping length	7.5mm
Standard	DIN EN 60 664；DIN EN 61984
