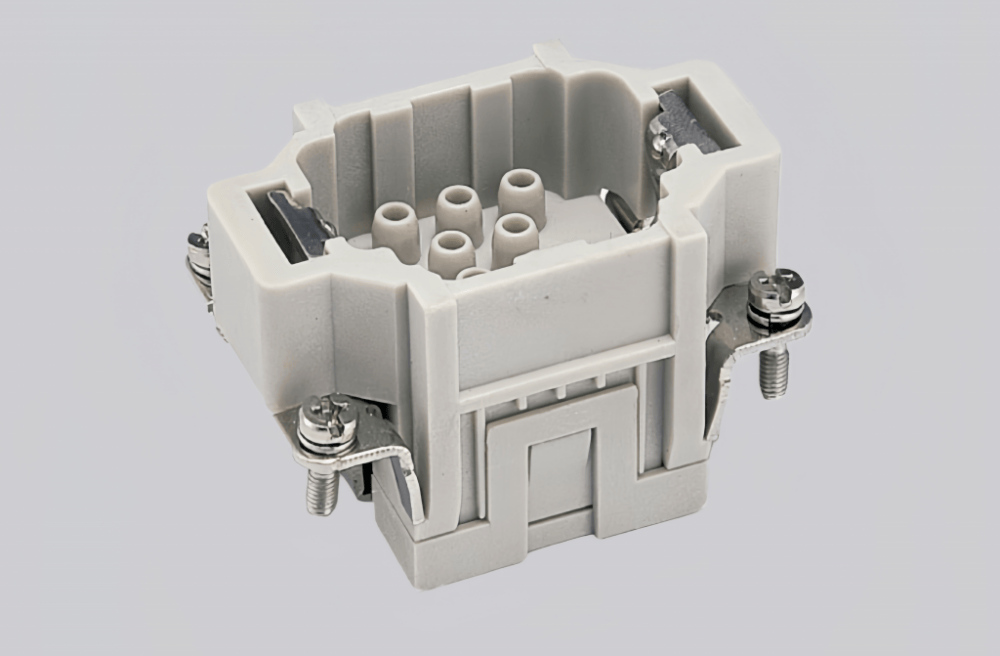

The HEE-010-MC is a compact, high-efficiency electrical connector designed for signal and low-power transmission in instrumentation, telecom equipment, and industrial control systems. Crafted with a lightweight yet durable thermoplastic housing, it provides reliable protection against dust and minor impacts, suitable for both indoor and semi-outdoor applications.
Rated for 10A current and 250V AC/DC, this connector ensures stable, low-noise signal transmission for sensitive electronic components. It supports board-to-board and wire-to-board configurations, with an operating temperature range of -40°C to 105°C and an IP65 ingress protection rating to shield against water jets and particulate matter.
Equipped with a snap-in locking design, the HEE-010-MC enables tool-free, one-handed mating and unmating for streamlined assembly. Fully compliant with RoHS and UL 1977 standards, it adheres to strict environmental and safety regulations, making it a cost-effective solution for compact connectivity needs.

Technical Data
| Series | HEE insert series |
| Connection type | Crimp connection |
| Male/female | Male |
| Specifications | 6B |
| Number of connector contacts | 10 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 16A 830V 8KV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated; Gold-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.14-4.0mm² |
| Wire gauge (AWG) | 26-12 AWG |
| Stripping length | 7.5mm |
| Standard | DIN EN 60 664;DIN EN 61984 |
