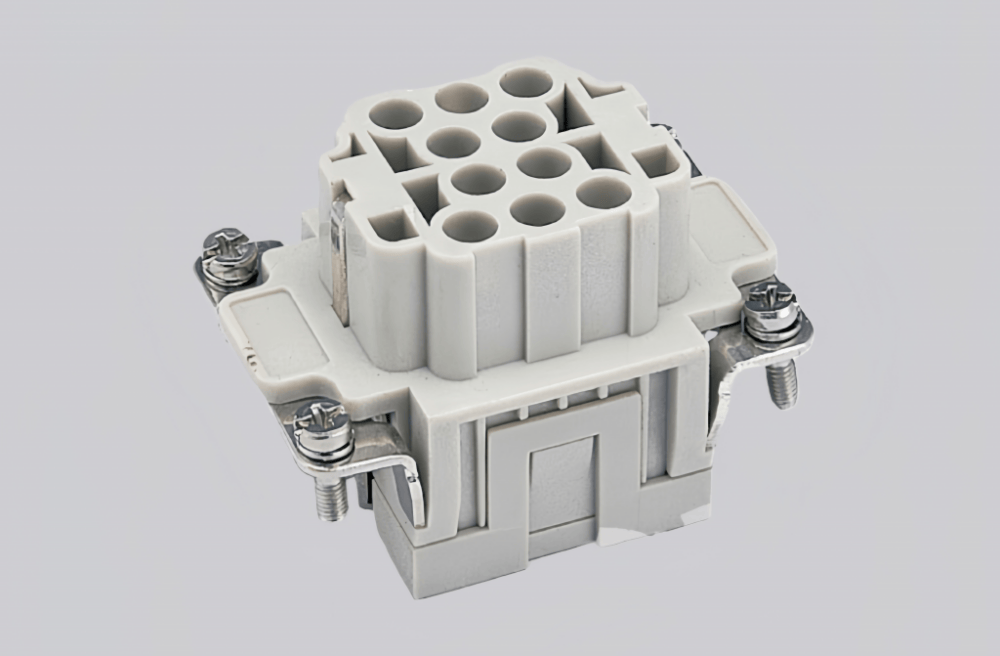

HEE-010-FC | High-Quality Rectangular Connectors

The HEE-010-FC is a compact, high-precision electrical connector tailored for signal and low-power transmission in instrumentation, telecom devices, and industrial control panels. Made with a lightweight, flame-retardant thermoplastic housing, it resists dust accumulation and minor mechanical impacts, ideal for space-constrained indoor and semi-outdoor installations.

Rated for 10A current and 250V AC/DC, this connector ensures low-noise, stable signal transmission for sensitive electronic components. It supports flexible wire-to-board and board-to-board connections, with an operating temperature range of -40°C to 105°C and an IP65 rating that defends against water jets and particulate intrusion.

Featuring a user-friendly snap-in locking mechanism, the HEE-010-FC enables tool-free, one-handed mating and unmating to streamline assembly workflows. Fully compliant with RoHS and UL 1977 standards, it meets stringent environmental and safety requirements, serving as a cost-effective, reliable solution for compact connectivity applications.

HEE-010-FC | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HEE insert series
Connection type	Crimp connection
Male/female	Female
Specifications	6B
Number of connector contacts	10
Grounding contacts	Yes
Rated current	16A
Rated voltage	500V
Rated pulse voltage	6KV
Class of pollution	3
Parameters when class of pollution is 2	16A 830V 8KV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated; Gold-plated
Contact resistance	≤1mΩ
Wire gauge (mm²)	0.14-4.0mm²
Wire gauge (AWG)	26-12 AWG
Stripping length	7.5mm
Standard	DIN EN 60 664；DIN EN 61984
