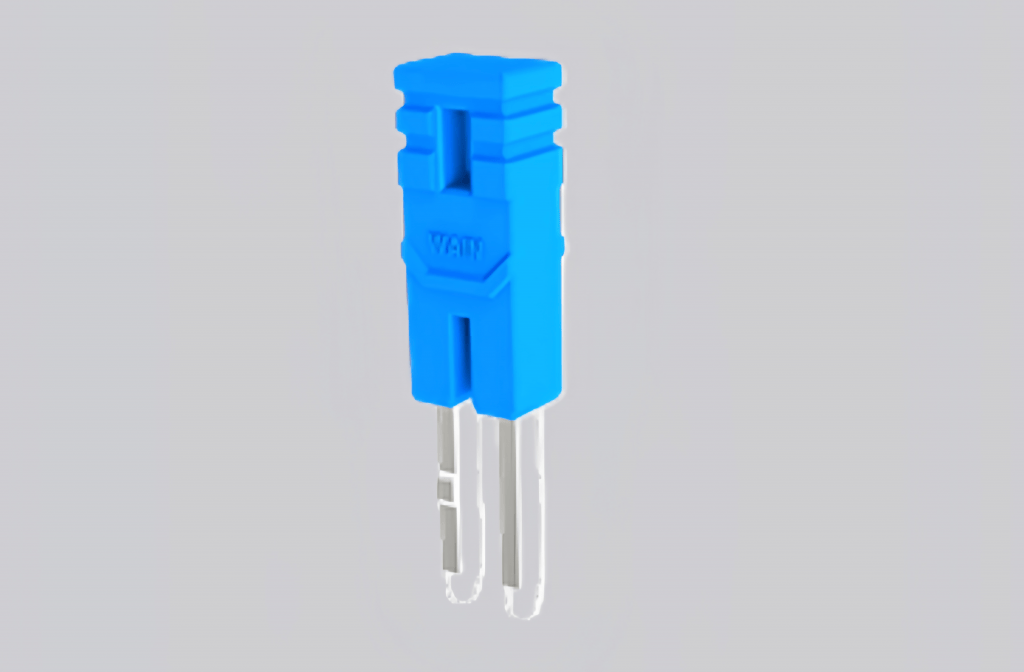

The HEB/P-2T1 is a vertical bridge module customized for WAIN’s HE series industrial connectors, engineered to deliver 2-Pin vertical short-circuit functionality. It serves as a key accessory for industrial control circuits, enabling stable short-circuit connections between designated contacts of matched HE series connectors to optimize circuit layout and signal transmission efficiency.
It features consistent high-performance parameters with its series counterparts, supporting a rated voltage of 500V and a rated current of 16A, with compliance to UL/CSA standards allowing for a 600V rating. Crafted from UL94 V0 flame-retardant polycarbonate, the module operates reliably across an extreme temperature range of -40°C to 125°C, resisting heat and corrosion in harsh industrial settings.
Adopting a spring contact connection design, it is compatible with 0.14–2.5mm² (28–14 AWG) wires with a required stripping length of 9mm. The tin-plated copper alloy contacts ensure low contact resistance (≤3mΩ), and it boasts a plug-in lifespan of over 500 cycles. Ideal for industrial automation equipment and power distribution systems, it elevates circuit connection stability and flexibility.
Technical Data
| Series | HE insert series |
| Connection type | Vertical 2PIN short connection |
| Number of connector contacts | 2 |
| Grounding contacts | No |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥50 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 5012 (light blue) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Tin-plated |
| Contact resistance | ≤3mΩ |
| Standard | DIN EN 60 664, DIN EN 61984 |
