HEB/P-1T3 | High-Quality Rectangular Connectors

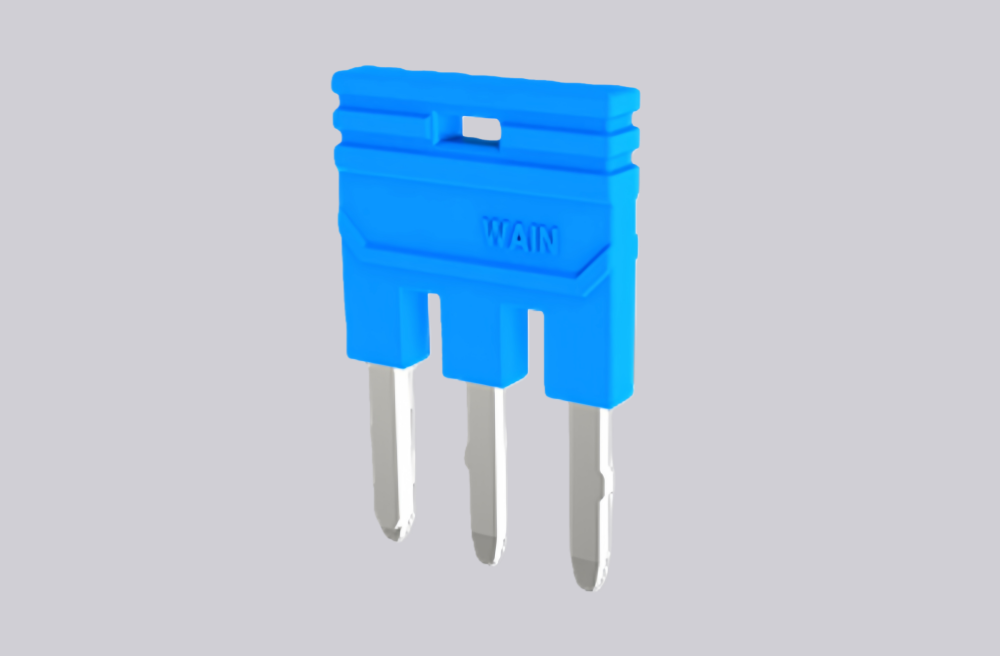

The HEB/P - 1T3 is a horizontal bridge module designed to match WAIN’s HE series industrial connectors, with a product part number of 1980020070028. It is specifically developed to achieve horizontal 3 - Pin short - circuit function, which can reliably realize short - circuit connection between three corresponding contacts of industrial connectors in industrial control circuits.

It has consistent core performance parameters with the same series of bridge modules. It supports a rated voltage of 500V and a rated current of 16A, and its rated voltage can reach 600V in accordance with UL/CSA standards. The module can operate stably in an extreme temperature environment ranging from -40°C to 125°C and meets UL94 V0 flame - retardant grade due to the polycarbonate material adopted.

Its contact is made of copper alloy with tin plating on the surface, and the contact resistance is no more than 3mΩ. It adopts a spring contact connection method, suitable for wires with a specification of 0.14 - 2.5mm² (28 - 14 AWG), and the required wire stripping length is 9mm. With a plug - in and pull - out life of no less than 500 times, it is suitable for industrial automation equipment and power distribution systems that need 3 - Pin short - circuit matching, effectively enhancing the stability and flexibility of circuit connections.

Technical Data
