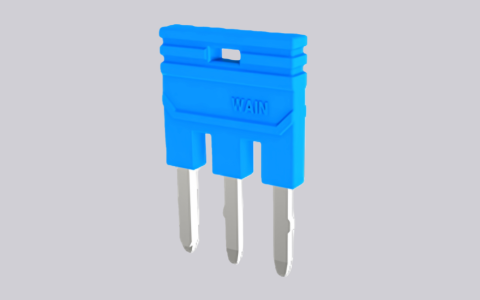

The HEB/P - 1T2 is a horizontal bridge module tailored for matching WAIN’s HE series industrial connectors, with a product part number of 1980020070027. It is specifically designed to achieve 2 - Pin horizontal short - circuit functionality, which can flexibly realize the short - circuit connection between contacts of corresponding industrial connectors in industrial control systems.
It shares core performance parameters with the matching HE series connectors. It supports a rated voltage of 500V and a rated current of 16A, and can work stably in a harsh temperature environment ranging from -40°C to 125°C. The module is made of polycarbonate that meets UL94 V0 flame - retardant grade, ensuring good safety in high - temperature or fault conditions.
Its compatible connection method is spring contact. It is applicable to wires with a specification of 0.14 - 2.5mm² (28 - 14 AWG), and the required wire stripping length is 9mm. With a plug - in and pull - out life of no less than 500 times, it is suitable for industrial automation equipment and power distribution systems that need short - circuit matching, effectively improving the flexibility and stability of the circuit connection.
Technical Data
| Series | HE insert series |
| Connection type | Horizontal 2PIN short circuit |
| Number of connector contacts | 2 |
| Grounding contacts | No |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥50 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 5012 (light blue) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Tin-plated |
| Contact resistance | ≤3mΩ |
| Standard | DIN EN 60 664、DIN EN 61984 |
