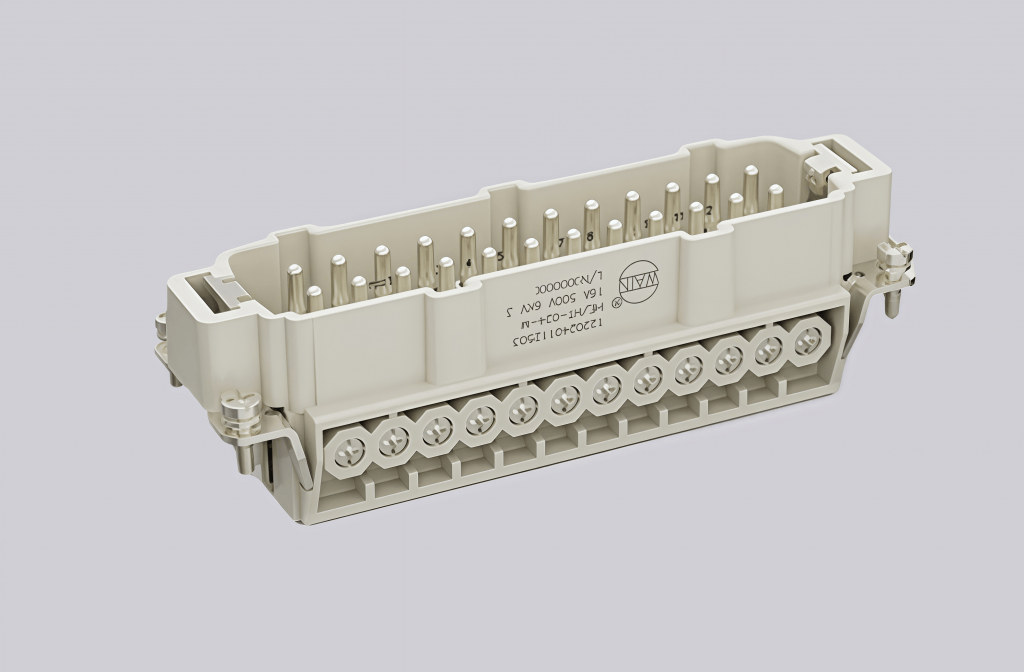

The HE/HT-024-M is a high-density industrial circular connector engineered for simultaneous power and signal transmission in complex industrial scenarios. Equipped with 24 gold-plated contacts, it delivers low contact resistance, superior conductivity, and strong anti-corrosion performance to ensure stable long-term operation.
It features an IP65-rated dustproof and splash-proof housing, enabling reliable performance in temperatures ranging from -30°C to +110°C. Its rugged metal shell provides robust protection against shock and vibration, making it well-suited for harsh working environments.
Fully compatible with HE/HT-series mating connectors, this connector adopts a twist-lock mechanism for secure, tool-free installation. It is an ideal choice for applications such as industrial automation systems, control panels, and communication equipment.
Technical Data
| Series | HE insert series |
| Connection type | Screw connection |
| Male/female | Male |
| Specifications | 24B |
| Number of connector contacts | 24 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Limiting temperature | -40℃...+200℃ |
| Mating cycles | ≥500 |
| Inserts material | Liquid Crystal Polymer |
| Inserts color | Beige |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 7mm |
| Standard | DIN EN 60 664、DIN EN 61984 |
