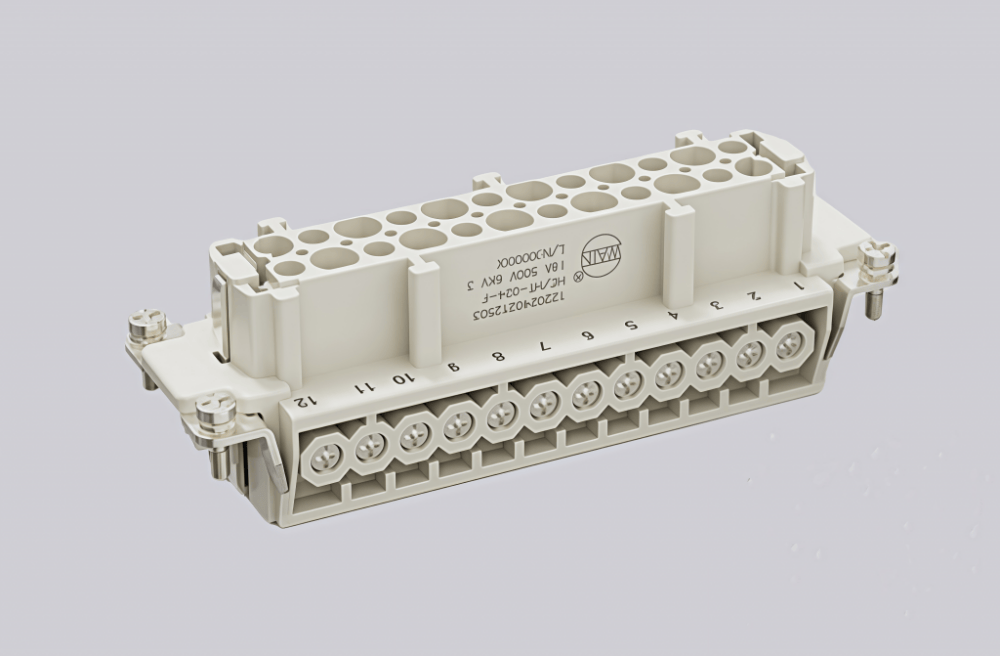

The HE/HT-024-F is a high-density industrial circular connector tailored for synchronized power and signal transmission in intricate industrial environments. Outfitted with 24 gold-plated contacts, it guarantees low contact resistance, outstanding conductivity, and robust anti-corrosion capabilities to support consistent long-term functionality.
It comes with an IP65-rated dustproof and splash-proof housing, allowing steady performance in temperatures ranging from -30°C to +110°C. Its sturdy metal shell offers strong defense against shock and vibration, rendering it highly suitable for harsh working conditions.
Fully compatible with HE/HT-series mating connectors, this connector utilizes a twist-lock mechanism for secure, tool-free installation. It serves as an optimal solution for applications including industrial automation systems, control panels, and communication equipment.
Technical Data
| Series | HE insert series |
| Connection type | Screw connection |
| Male/female | Female |
| Specifications | 24B |
| Number of connector contacts | 24 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Limiting temperature | -40℃...+200℃ |
| Mating cycles | ≥500 |
| Inserts material | Liquid Crystal Polymer |
| Inserts color | Beige |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 7mm |
| Standard | DIN EN 60 664、DIN EN 61984 |
