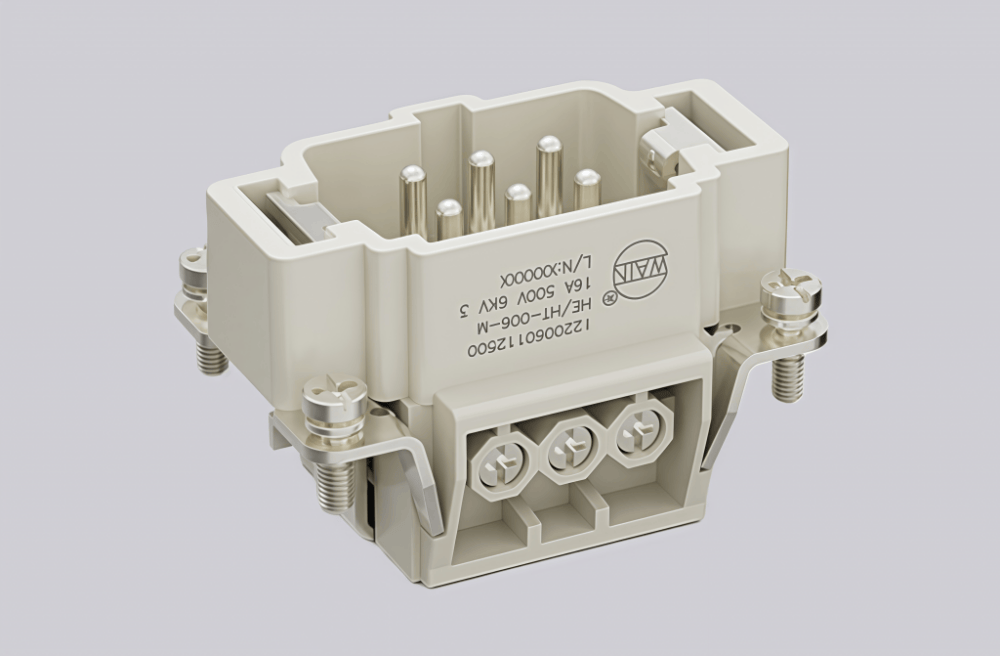

The HE/HT-006-M is a high-performance industrial circular connector engineered for stable power and signal transmission in tough industrial environments. Equipped with 6 gold-plated contacts, it ensures low contact resistance, excellent conductivity, and strong anti-corrosion performance for long-term reliable operation.
It features an IP65-rated dustproof and splash-proof housing, enabling consistent functionality in temperatures ranging from -30°C to +110°C. Its rugged metal shell provides robust protection against shock and vibration, making it well-suited for harsh working conditions.
Fully compatible with HE/HT-series mating connectors, this connector adopts a twist-lock mechanism for secure, tool-free installation. It is an ideal choice for applications such as industrial automation systems, control panels, and communication equipment.
Technical Data
| limiting temperature | -40℃...+200℃ |
| standard | DIN EN 60 664、DIN EN 61 984 |
| stripping length | 7mm |
| wire gauge awg | 26-14 AWG |
| wire gauge mm² | 0.14-2.5mm² |
| contact resistance | ≤1mΩ |
| surface treatment | Silver-plated |
| material contacts | Copper alloy |
| material flammability class acc to ul 94 | V0 |
| color insert | beige |
| material insert | Liquid Crystal Polymer |
| mating cycles | ≥500 |
| series | HE insert series |
| insulation resistance | ≥10¹⁰Ω |
| pollution degree | 3 |
| rated impulse voltage | 6KV |
| rated voltage | 500V |
| rated current | 16A |
| grounding contacts | Yes |
| number of contacts | 6 |
| specifications | 6B |
| male female | Male |
| connection type | Screw connection |
