HE-024-MQ P | High-Quality Rectangular Connectors

The HE-024-MQ P is a high-density male industrial circular connector, perfectly compatible with female connectors like the HE-024-FQ P for precise, stable connections. It features a reinforced metal housing with an IP67 ingress protection rating, effectively blocking dust, liquid, and mechanical wear to ensure consistent performance in harsh industrial environments.

It is fitted with 24 gold-plated male contacts, which minimize contact resistance and guarantee reliable signal and power transmission. The connector supports a rated current of 5A per contact and a rated voltage of 300V AC/DC, and operates efficiently across a wide temperature range from -40°C to 125°C, adapting to extreme thermal fluctuations.

With a quick-action bayonet locking mechanism, the HE-024-MQ P enables tool-free, secure mating and unmating even under strong vibration. Its compact, high-density structure makes it ideal for space-limited applications such as industrial control systems, test instrumentation, and communication equipment that demand multi-channel connectivity solutions.

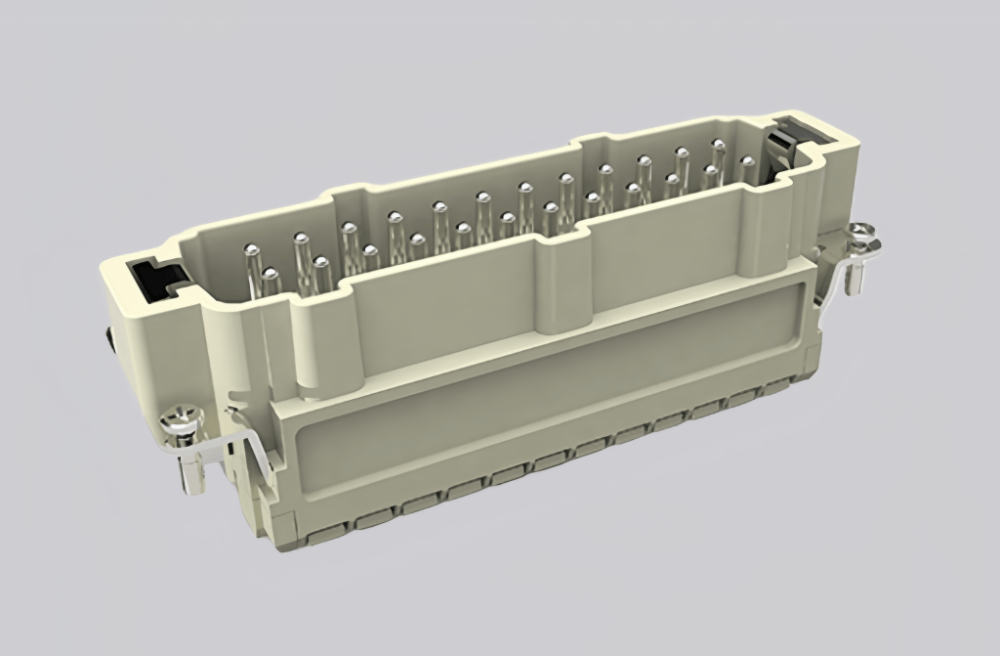

HE-024-MQ P | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HE insert series
Connection type	Spring connection (quick connection)
Male/female	Male
Specifications	24B、48B
Number of connector contacts	24
Grounding contacts	Yes
Rated current	16A
Rated voltage	500V
Rated pulse voltage	6KV
Class of pollution	3
Parameters when class of pollution is 2	16A 400/690V 6KV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated
Contact resistance	≤1mΩ
Wire gauge (mm²)	0.5-2.5mm²
Wire gauge (AWG)	20-14 AWG
Stripping length	9-10mm
Standard	DIN EN 60 664, DIN EN 61984
