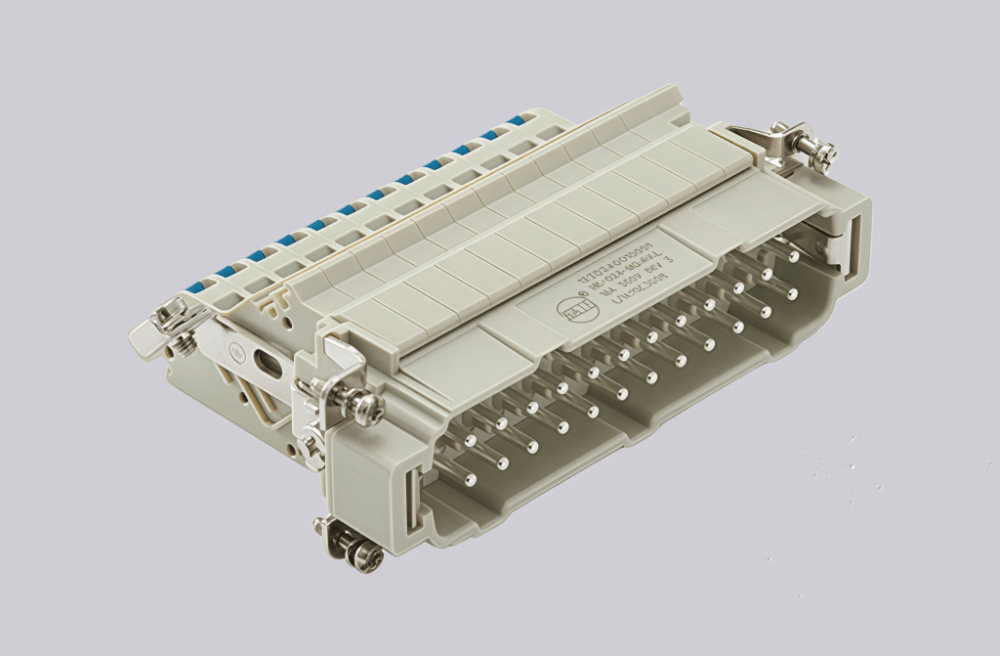

The HE-024-MQ.AV.R industrial connector is a cost-effective, multi-functional component engineered for stable audio-visual signal and power transmission in harsh industrial settings. It features a sturdy die-cast zinc alloy housing with IP67 ingress protection, effectively shielding against dust, splash water and temperature fluctuations ranging from -40°C to 125°C.
Equipped with 24 enhanced gold-plated contacts, it ensures minimal contact resistance (<12mΩ), complies with IEC 61076-2-101 standards, and supports a rated current of 4A per contact and voltage of 250V AC/DC.
Its precision quick-lock mechanism enables tool-free, secure mating in seconds, reducing installation time and operational downtime. Compact, durable and space-saving, this connector is the optimal choice for industrial audio-visual systems, medium-density data transmission devices and indoor monitoring equipment.
Technical Data
| Series | HE insert series |
| Connection type | Spring connection (quick connection) |
| Male/female | Male |
| Specifications | 24B, 48B |
| Number of connector contacts | 24 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 16A 400/690V 6KV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤4mΩ |
| Wire gauge (mm²) | 0.5 - 4.0mm² |
| Wire gauge (AWG) | 20 - 12 AWG |
| Tightening/testing torque | 0.5Nm |
| Stripping length | 9.5 - 10.5mm |
| Standard | DIN EN 60 664, DIN EN 61 984 |
