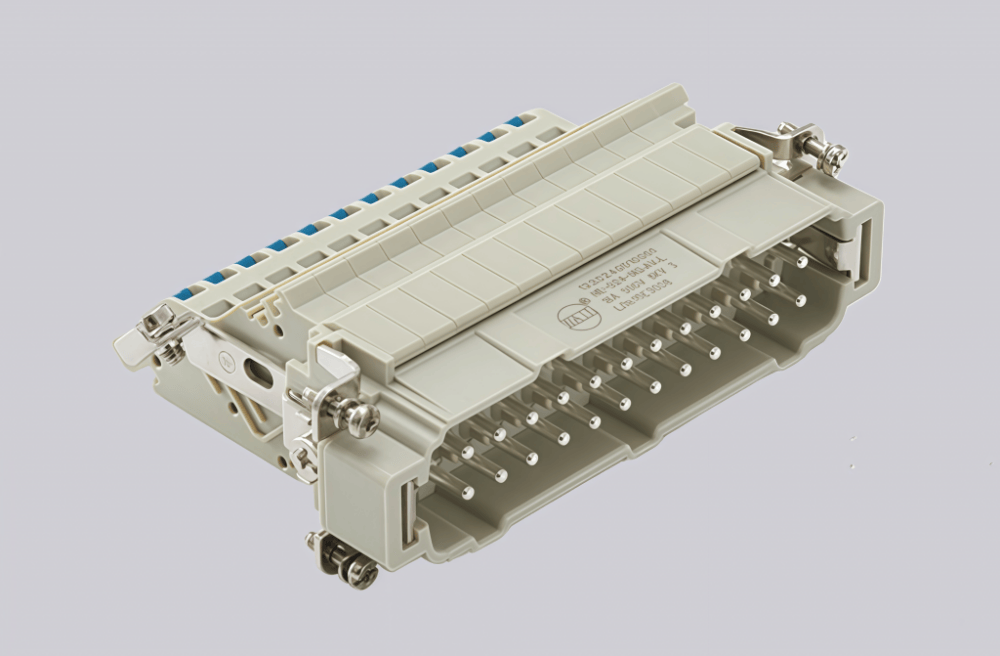

HE-024-MQ.AV.L | High-Quality Rectangular Connectors

The HE-024-MQ.AV.L industrial connector is a cost-effective and multi-functional component designed specifically for stable audio-visual signal and power transmission in harsh industrial environments. It adopts a robust die-cast zinc alloy housing with IP67 ingress protection, which can effectively resist dust and splash water, and withstand temperature variations ranging from -40°C to 125°C.

Equipped with 24 enhanced gold-plated contacts, it features a contact resistance of less than 12mΩ, complies with the IEC 61076-2-101 standard, and supports a rated current of 4A per contact and a rated voltage of 250V AC/DC.

Its high-precision quick-lock mechanism enables tool-free, fast and secure mating in seconds, greatly shortening installation time and reducing equipment downtime. With the advantages of compact size, durability and space-saving design, this connector is an ideal choice for industrial audio-visual systems, medium-density data transmission devices and indoor monitoring equipment.

HE-024-MQ.AV.L | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HE insert series
Connection type	Spring connection (quick connection)
Male/female	Male
Specifications	24B, 48B
Number of connector contacts	24
Grounding contacts	Yes
Rated current	16A
Rated voltage	500V
Rated pulse voltage	6KV
Class of pollution	3
Parameters when class of pollution is 2	16A 400/690V 6KV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated
Contact resistance	≤4mΩ
Wire gauge (mm²)	0.5-4.0mm²
Wire gauge (AWG)	20-12 AWG
Tightening/testing torque	0.5Nm
Stripping length	9.5-10.5mm
Standard	DIN EN 60 664, DIN EN 61 984
