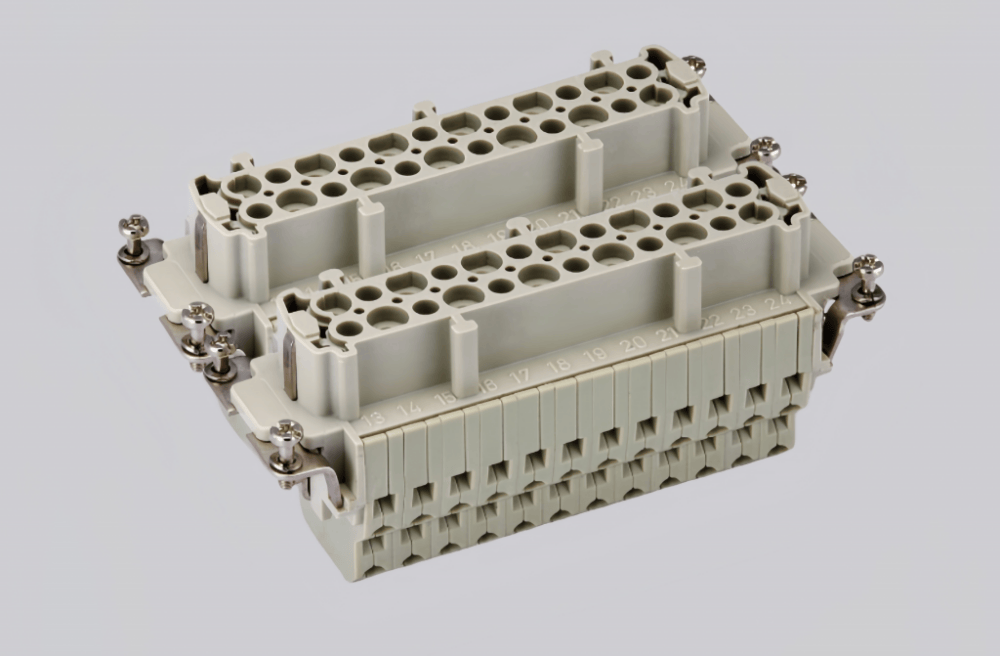

The HE-024-FSS(25-48) is a high-performance industrial connector engineered for reliable power and signal transmission in harsh environments. Boasting 24 contact pins with a rated current of 25A per pin and a voltage rating of 480V AC/DC, it delivers stable connectivity for heavy-duty industrial applications.
Featuring a rugged metal shell with IP67 ingress protection, it resists dust, moisture, and extreme temperatures ranging from -40°C to +125°C. The quick-lock mating mechanism ensures secure installation and anti-vibration performance, while its compact design suits space-constrained setups. Ideal for automation systems, robotics, and power distribution, it meets IEC 61646 standards for quality and durability.
Technical Data
| Series | HE insert series |
| Connection type | Spring connection |
| Male/female | Female |
| Specifications | 24B; 48B |
| Number of connector contacts | 24 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 16A 400/690V 6KV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 7-9mm |
| Standard | DIN EN 60 664; DIN EN 61984 |
