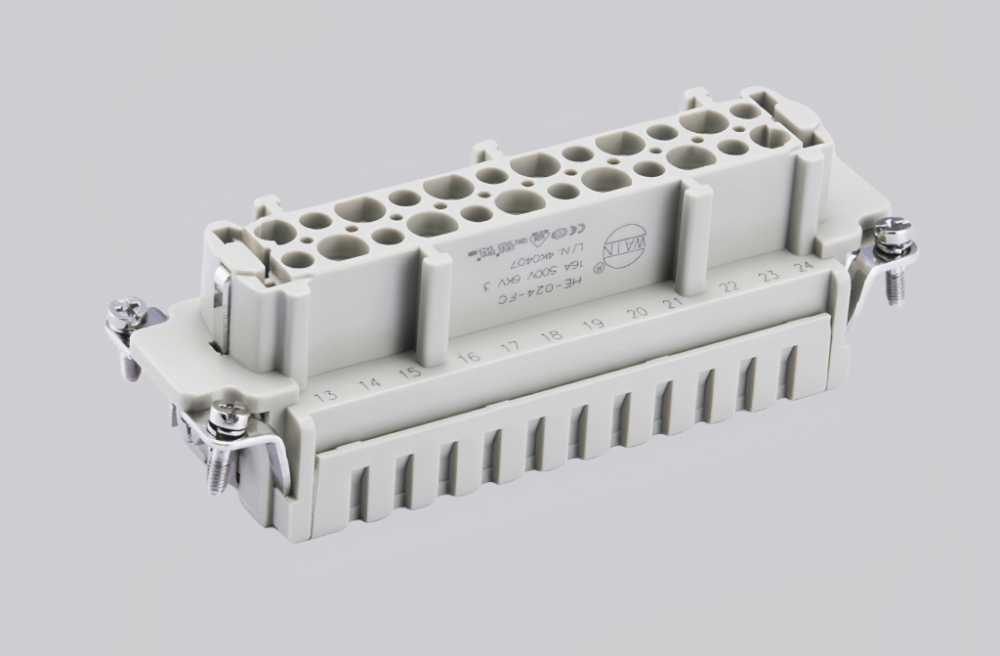

The HE-024-FS is a high-performance industrial connector engineered for heavy-duty applications requiring reliable power and signal transmission. Boasting a 24-contact configuration and optimized for 25–48V DC operation, it delivers stable connectivity in critical industrial scenarios.
Its rugged, flame-retardant shell offers IP65 protection and strong electromagnetic shielding, while precision silver-plated contacts minimize signal loss and resist corrosion. The anti-vibration screw locking design ensures secure mating even in high-vibration equipment.
Featuring tool-free installation with TS35 rail and panel mounting options, it suits automation systems, heavy machinery, and transit equipment. Compliant with IEC, UL, and RoHS standards, it ensures long-term safety and efficiency in harsh environments with extreme temperatures, moisture, and dust.
Technical Data
| Series | HE insert series |
| Connection type | Spring connection |
| Male/female | Female |
| Specifications | 24B、48B |
| Number of connector contacts | 24 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 16A 400/690V 6KV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 7-9mm |
| Standard | DIN EN 60 664、DIN EN 61984 |
